0-62152-701

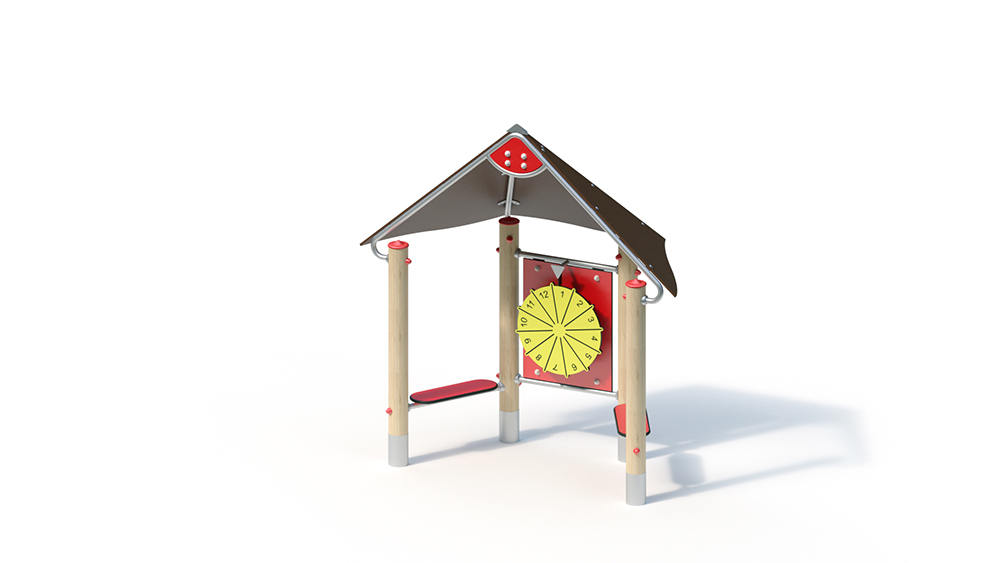

Play arbour

Key Attributes

Age Group

1+

Area of Use

Public Playgrounds

Activity

Social

Suitable for

Suitable for
All Ages,
Public Playgrounds etc.
Social Activities.

Techincal Specifications

Lifting Device

-

Total Length

1.05 m

Total Width

2.15 m

Total Height

2.30 m

Minimum Space Length

5.30 m

Minimum Space Width

4.05 m

Minimum Space Height

2.30 m

Heaviest Single Piece

30.00 kg

(Total) Weight

155.00 kg

Free Height of Fall

0.40 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Floor space: 1.05 x 2.15 m
Minimum space: 4.05 x 5.30 m
Total height: 2.30 m
Seat height: 0.40 m
Weight: 30 kg Heaviest individual part
155 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat made of colored, highly weather-resistant HPL laminate board, 20 mm
– Wheel of fortune made of HPL laminate board 20 mm

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
