Area of Use
Public Playgrounds etc.
Minimum Space Length
Minimum Space Width
Minimum Space Height
Heaviest Single Piece
Free Height of Fall
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Number of Installers
Assembly time 2 fitters 2 hours each (without foundation creation)
Floor area: 1.05 x 2.15 m
Minimum space: 4.15 x 5.30 m
Total height: 2.30 m
Seat height: 0.40 m
Weight: 30 kg Heaviest individual part
155 kg in total

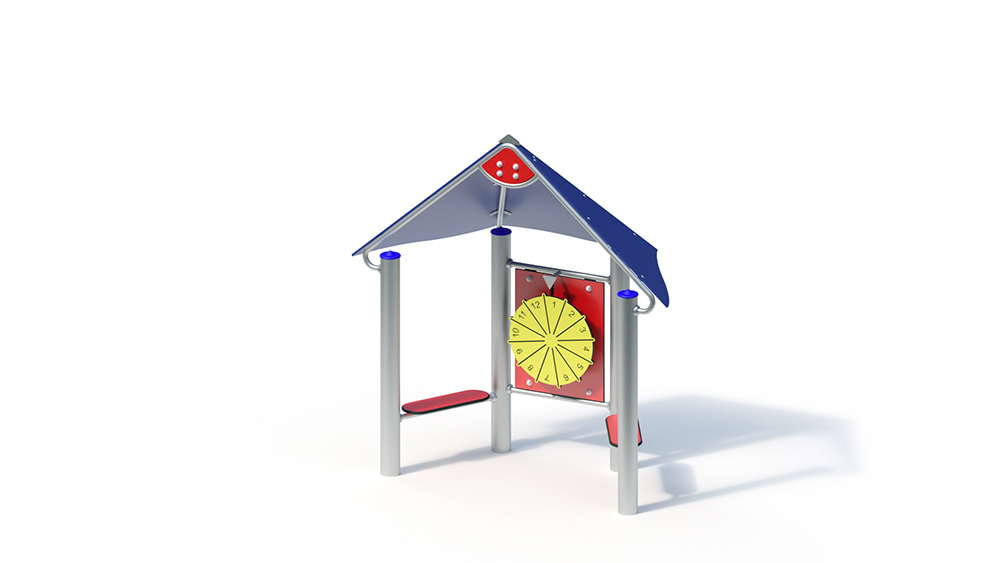

posts Support posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable post caps made of stainless steel.
– tent roof, inclination 45 °, made of highly weather-resistant HPl laminate board, 13 mm. Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat: made of colored, highly weather-resistant HPL laminate board, 20 mm
– Wheel of fortune made of HPL laminate board 20 mm
Metal components: stainless steel. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
