Osmium

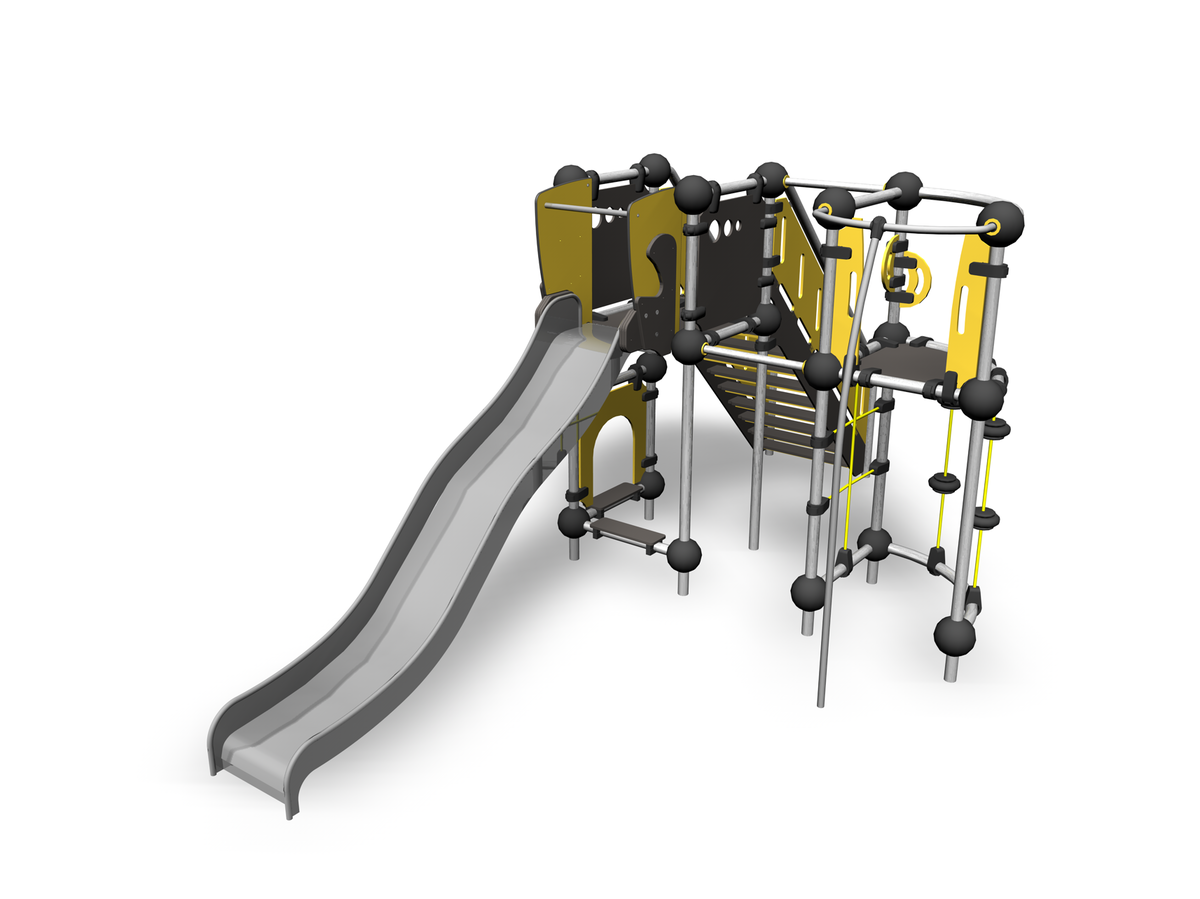

Osmium is a multipurpose piece of playground equipment that will fit in a small space. It has two 1,470 mm high towers, one with a slide accessed by steps, and one that can be reached via a climbing net or ropes. Descent from the climbing tower is by fireman’s pole. Beneath the other equipment is a wall with windows for playing shop or other games, which increases the set’s imaginative potential.
Technical Information
Length
2550MM
Width
5000MM
Height
2320MM
Heaviest Part
75KG
Largest Part
3000MM
Min Space Height
3270MM
Falling Space Area
32.3M²
Falling Space Length
8350MM
Falling Space Width
5460MM
Impact Area
30.2M²
Max Free Fall Height
1470MM
Number Of Climbing
3
Number Of Play Walls
1
Slide Number
2
Stairs Number
1
Number Of Towers
2
Stairs
Materials
Material Text
The frame is made of a hot-dip galvanised steel tube measuring 60 mm in diameter. The ball joints and panel fastenings of the frame are made of glass-fibre reinforced polyamide plastic for outdoor use. They are highly durable against temperature and weather changes and physical impacts. Slides are made of austenitic stainless steel. Wall and platform panels are made of 15mm thick HPL panels, which are durable against wear and weather conditions. HPL material is recommended for playgrounds subjected to rougher use than usual.
Installation
Installation Time
24H (for 1)
Netto Weight
376.648KG
