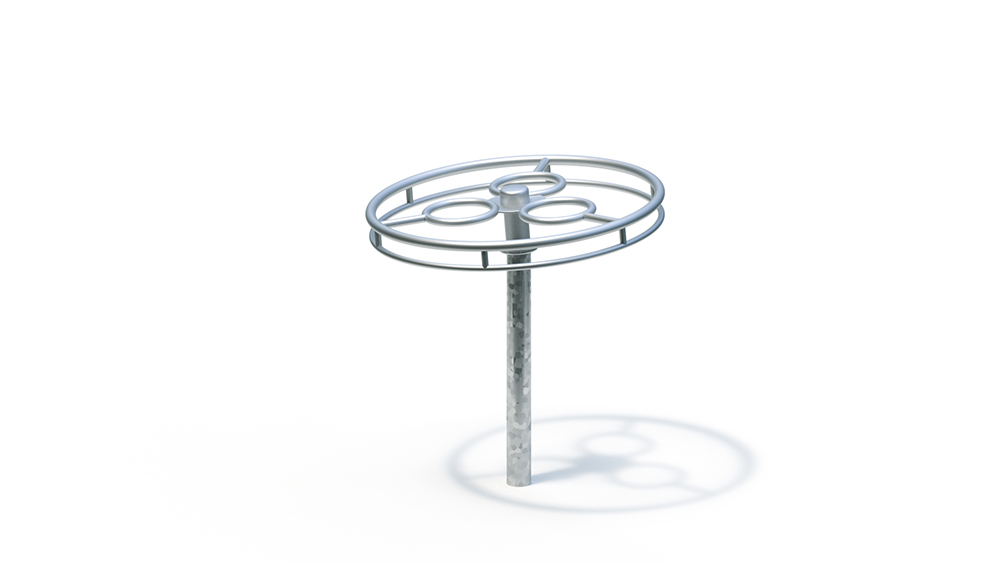

Mini skyflyer

Key Attributes

Age Group


Area of Use

Public Playgrounds


Physical activity

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

1.71 m

Total Width

1.71 m

Total Height

1.80 m

Minimum Space Length

7.71 m

Minimum Space Width

7.71 m

Minimum Space Height

1.80 m

Heaviest Single Piece

99.00 kg

(Total) Weight

174.00 kg

Free Height of Fall

0.45 m

Platform Heights



Foundation 1

1 piece - 1.40 x 1.40 x 0.70 m volume: 1.38 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Base area: Ø 1.71 m
Minimum space: Ø 7.71 m (47 m²), of which the fall area: Ø 5.71 m (25 m²)
Total height: 1.80 m
Weight: 99 kg, heaviest individual part
174 kg in total

– Post made of tubular steel, hot-dip galvanized, with base plate
– Hand wheel made of stainless steel, rotating at an angle of 15 °
– Pivot bearing: multiple roller-bearing axis in a dirt-protected, tamper-proof bearing housing made of stainless steel
– Anchoring takes place via a foundation ring that has to be concreted separately

Foundation (on site)
1 pc. 1.40 x 1.40 x 0.70 m
amount of concrete: 1.37 m³

Free fall height
0.15 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
