Mikado Tower “Stuttgart”

Mikado Tower – Stuttgart

Order Number: 1.0007-EM

This tower is constructed with stainless steel posts and robinia wood.

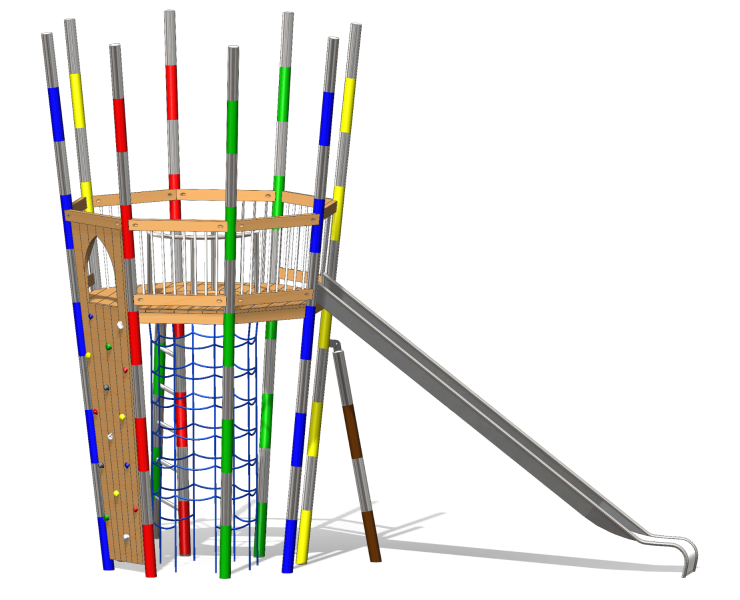

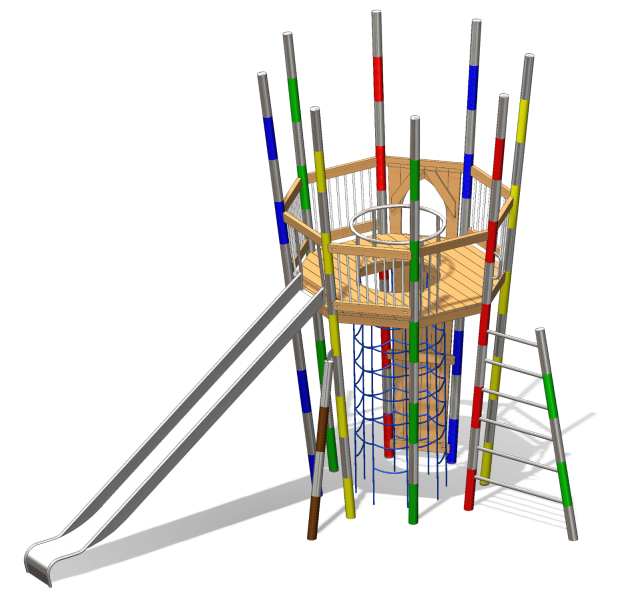

– Octagon tower with eight inclined stainless steel posts, lacquered in a segmental Mikado design.
– Octagon platform with an opening, platform height (PH) of 250cm.
– Net tunnel made of Hercules rope.
– Fall protection element made of stainless steel.
– HPL climbing wall with a step-through frame and synthetic resin climbing grips (optional standard color assortment).
– Ladder element made of wall bars.
– Stainless steel handle.
– Spiel-Bau slide made of stainless steel, box-shaped with a width of approximately 50cm and a PH of 250cm.
– Several balustrades and handrails.

Proudly made in Germany!

All support posts are made of stainless steel tubes with a diameter of 101.6mm, lacquered in the Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap.

To comply with environmental protection rules, all stainless steel surfaces are radiated with glass marbles.

All wooden parts are made of planed and chamfered Robinia wood. They remain untreated.

The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets.

The connection point between the net/rope and support posts is made through a specifically formed stainless steel fork and tensible stainless steel chain.

The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Please note that drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (see supplementary sheet to the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age6-12
Download Product Sheet

Technical Information


987 x 770 cm

Fall Height Group

300 cm



stainless steel, wood
