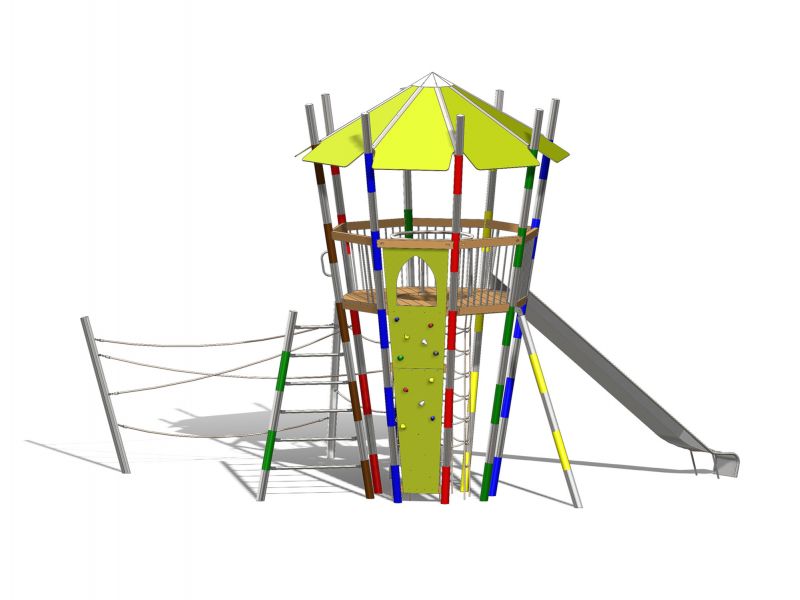

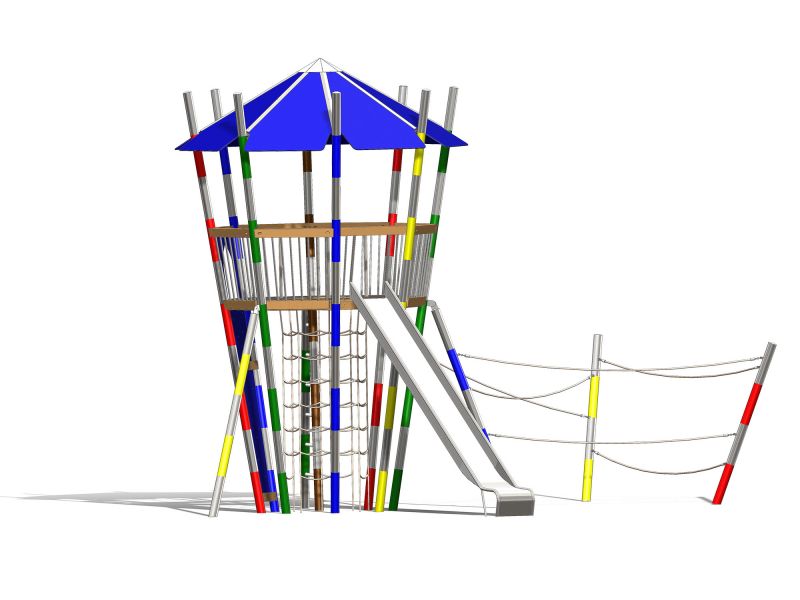

Mikado Tower – Sottrum

Order Number: 1.0015-EM

This tower is constructed with high-quality stainless steel posts and features a robinia wood design.

– Octagon tower with eight radial inclined stainless steel posts, lacquered in a segmental Mikado design.
– Spire roof made of HPL (optional standard color assortment) with a stainless steel cap.
– Octagon tower with a diameter of 180cm and a platform height of 100cm.
– Two pressure supports for added stability.
– Net tunnel made of Hercules rope.
– Fall protection element made of stainless steel.
– HPL climbing wall (optional standard color assortment) with a step-through frame and synthetic resin climbing grips.
– Trapezoidal ladder with stainless steel and one hold grip.
– Stainless steel Spiel-Bau slide with a box-shaped design.
– Four ropes attached to the tower and two stainless steel posts.
– Various balustrades and handrails.

Proudly made in Germany!

All support posts are made of stainless steel tubes with a diameter of 101.6mm, lacquered in the Mikado design. The visible ends of the posts are welded securely to a stainless steel cap. To ensure environmental protection, all stainless steel surfaces are radiated with glass marbles.

All wooden parts are made of planed and chamfered Robinia wood. They remain untreated.

The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains. The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Self-locking nuts are used exclusively.

Please note that drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
