1.0017-EM

Mikado Tower “Bremen”

Mikado Tower – Bremen
Order Number: 1.0017-EM
Stainless Steel Support Posts
Wood: Robinia

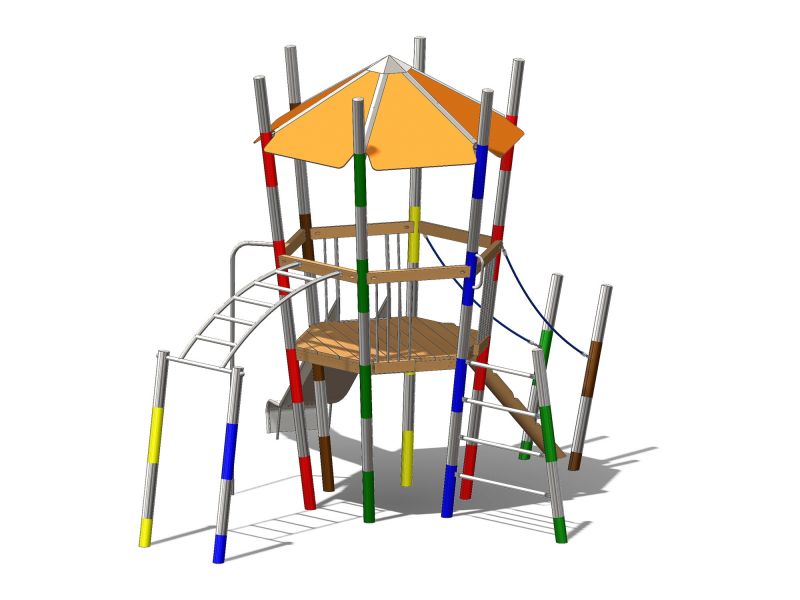

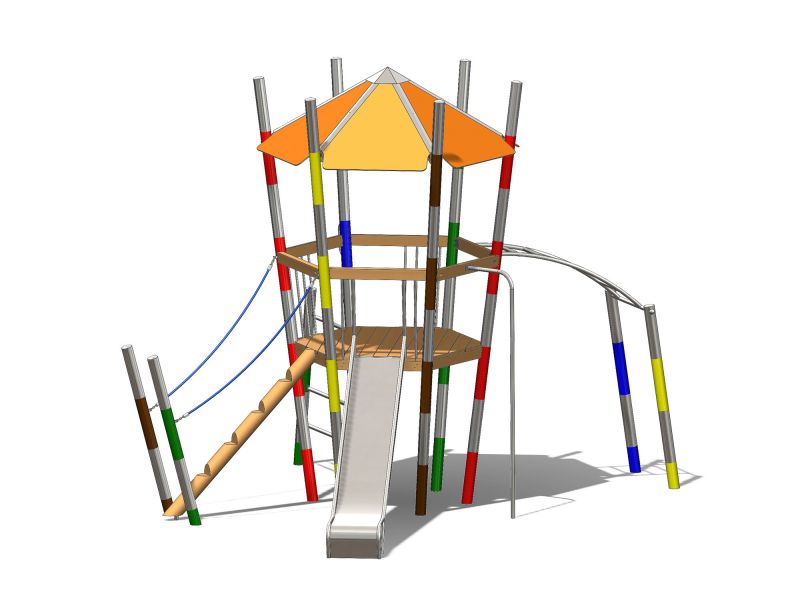

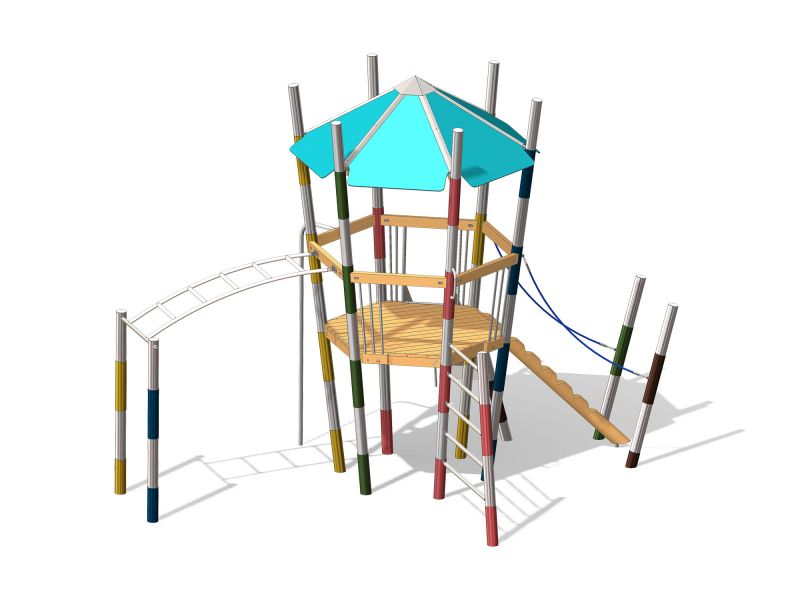

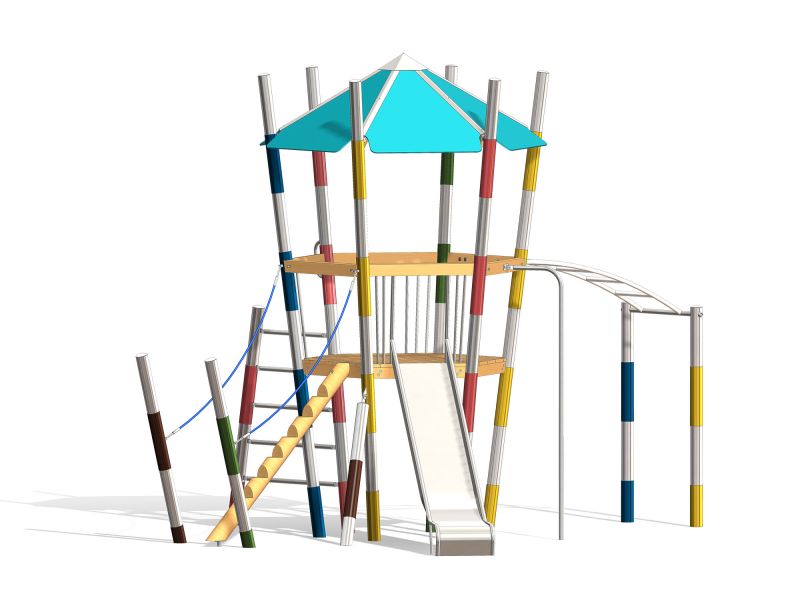

– One hexagon tower featuring stainless steel support posts, lacquered in a segmental design resembling Mikado.
– One HPL roof (optional standard color assortment).
– One hexagon platform with a diameter of 180cm and a platform height of 150cm.
– One chicken ladder consisting of two ropes made of Hercules rope, securely fixed on two stainless steel support posts, lacquered in a segmental design resembling Mikado.
– One box-shaped slide made of stainless steel.
– One climbing pole made of stainless steel.
– One dangle arch made of stainless steel, with a length of 200cm.
– One trapezoidal ladder made of stainless steel.
– Several balustrades and railings.

Proudly Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, lacquered in a segmental design resembling Mikado. The visible ends of the posts are conclusively welded to stainless steel caps. All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations. The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets. All wooden parts are made of Robinia, planed and chamfered, and remain untreated. The connection point between the net/rope and support posts is made using specifically formed stainless steel forks and tensible stainless steel chains. The nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6).

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age4 - 12
Download Product Sheet

Technical Information

Area

870 x 673 cm

Fall Height Group

230 cm

Materials

Material

stainless steel, wood, HPL
