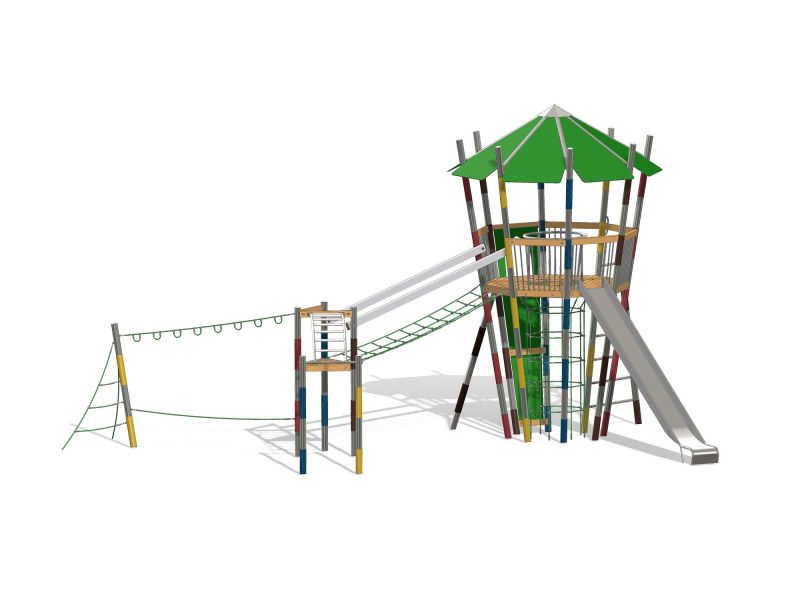

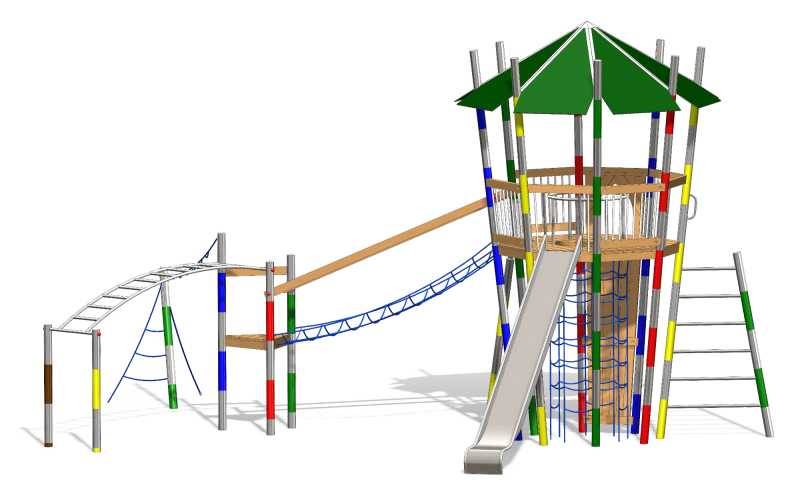

Mikado Construction “Stockholm”

Mikado Construction “Stockholm”

Mikado Construction – Stockholm
Order Number: 1.0022-EM
Material: Stainless steel posts
Wood: Robinia

– One octagon tower featuring eight radial inclined stainless steel posts, lacquered in a segmental Mikado design.
– One support post, lacquered in a segmental Mikado design.
– One octagon platform with an opening, platform height of 250cm.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cap.
– One net tunnel made of Hercules rope.
– One round stainless steel railing element.
– One climbing wall with a step-through frame and synthetic resin climbing grips.
– One ladder element made of wall bars.
– One stainless steel handle.
– One Spiel-Bau slide, box-shaped and made of stainless steel, platform height of 250cm.
– One net bridge made of Hercules rope, approximately 300cm in length, with a double-sided handrail.
– One triangular stage, approximately 90x90x90cm, platform height of 120cm, stainless steel posts lacquered in a segmental Mikado design.
– One dangle arch made of stainless steel, approximately 300cm in length, stainless steel posts lacquered in a segmental Mikado design.
– One slope-rope made of Hercules rope, approximately 300cm in length, on inclined stainless steel posts lacquered in a segmental Mikado design.
– One running-rope made of Hercules rope, approximately 300cm in length.
– One net ladder made of Hercules rope.
– One climbing rope made of Hercules rope.
– Several balustrades and railings.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, lacquered in the Mikado design.
All wooden parts are made of Robinia, planed and chamfered. All wooden parts are untreated.
The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made of Hercules rope.
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6)
