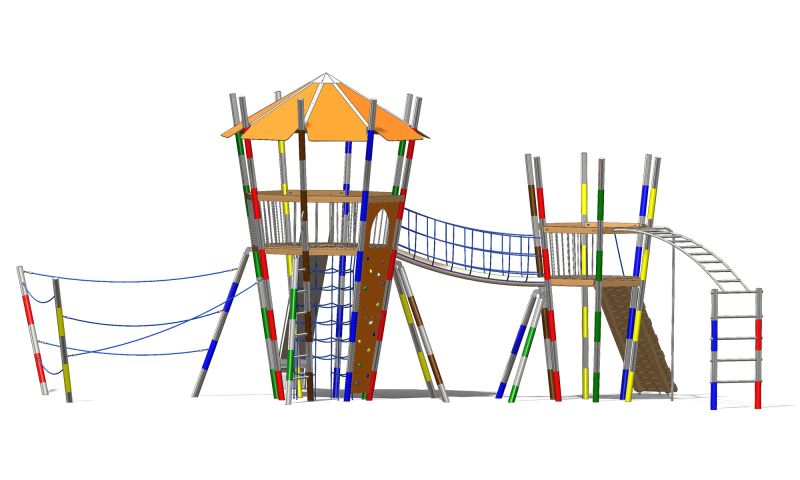

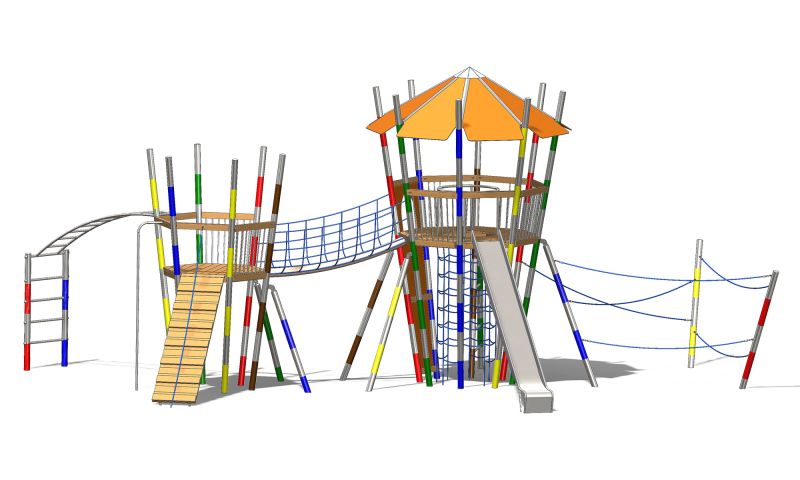

Mikado construction >>Lichtenberg<<
Order Number: 1.0052-EM
Stainless steel posts
Wood: Robinia

– One octagon tower featuring eight radial inclined stainless steel posts, lacquered in segments with Mikado design.
– One octagon platform with an opening, platform height (PH) of 250cm.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cover strip and cap.
– One stainless steel pressure support post.
– One net tunnel made of Hercules rope.
– One stainless steel fall protection element.
– One HPL climbing wall (optional standard color assortment) with a step-through frame and climbing grips made of synthetic resin.
– One stainless steel element of wall bars.
– One handhold.
– One box-shaped stainless steel slide.
– Six climbing ropes made of Hercules rope, with two stainless steel posts, lacquered in segments with Mikado design.
– One jungle bridge, approximately 300cm in length.
– Four stainless steel pressure support posts, lacquered in segments with Mikado design.
– One hexagon tower featuring six radial inclined stainless steel posts, lacquered in segments with Mikado design.
– One hexagon platform with a diameter of 180cm and a platform height (PH) of 200cm.
– One 45° climbing ramp with a safety rope made of Hercules rope.
– One stainless steel climbing pole.
– One stainless steel climbing arch with two stainless steel support posts, lacquered in segments with Mikado design.
– Several handrails and balustrades.

Made in Germany!
All stainless steel posts have a diameter of 101.6mm and are lacquered in segments with the Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap. All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets.
All wooden parts are made of Robinia, planed, and chamfered. All wooden parts are untreated.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6)
