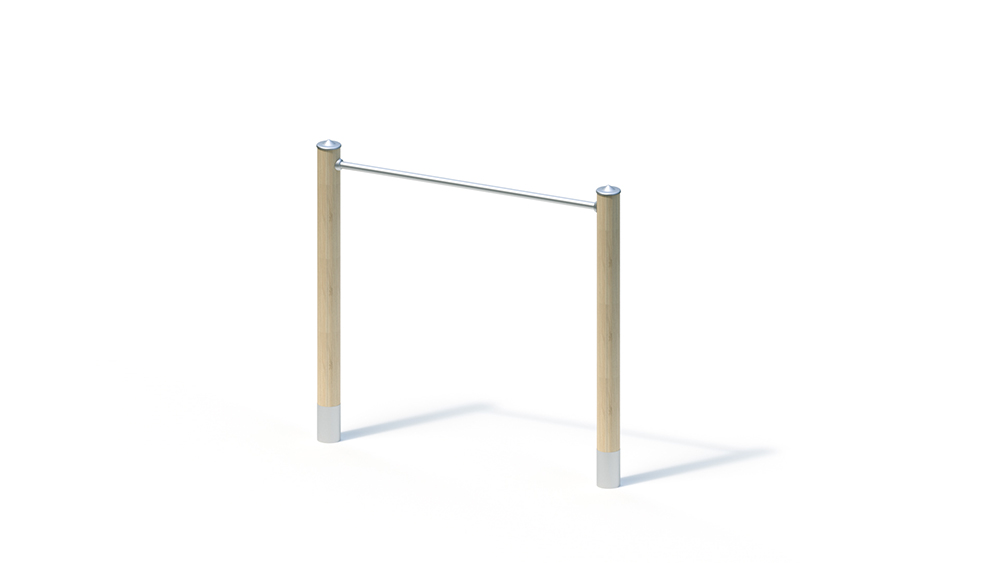

Midireck (1.50)
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Sport
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
1.75 m
Total Width
-
Total Height
1.65 m
Minimum Space Length
4.75 m
Minimum Space Width
3.15 m
Minimum Space Height
1.65 m
Heaviest Single Piece
20.00 kg
(Total) Weight
45.00 kg
Free Height of Fall
1.52 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.60 x 0.50 x 0.50 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter every 0.5 hours (without foundation creation)
Technical Data
Technical data
Length: 1.75 m
Minimum space: 4.75 x 3.15 m (16 m²)
Total height: 1.65 m
Bar height : 1.50 m
Weight: 20 kg, heaviest individual part
45 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Attachment parts
– horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof
Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
2 pcs. 0.50 x 0.60 x 0.50 m
amount of concrete: 0.30 m³
Free fall height
1.52 m
