“Merchant Store”
Merchant Store
Order Number: 2.0150-E
Stainless Steel Posts
Wood: Robinia

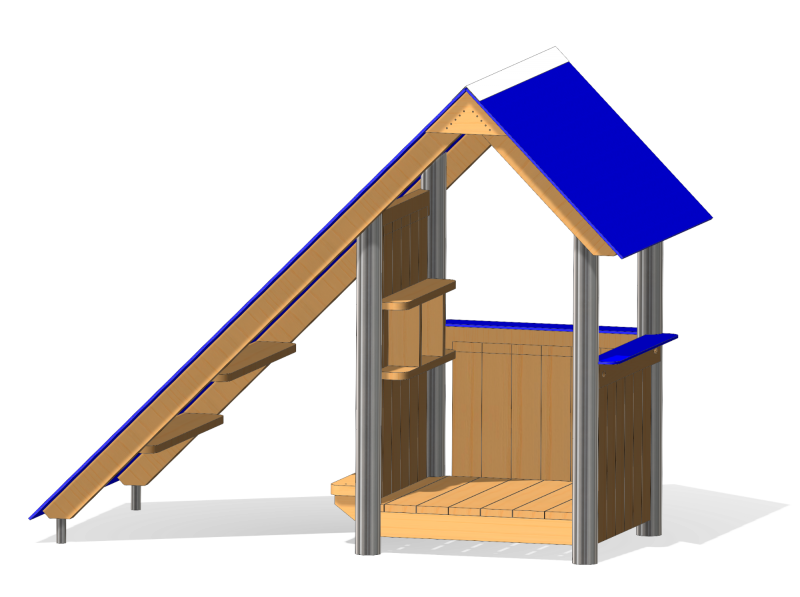

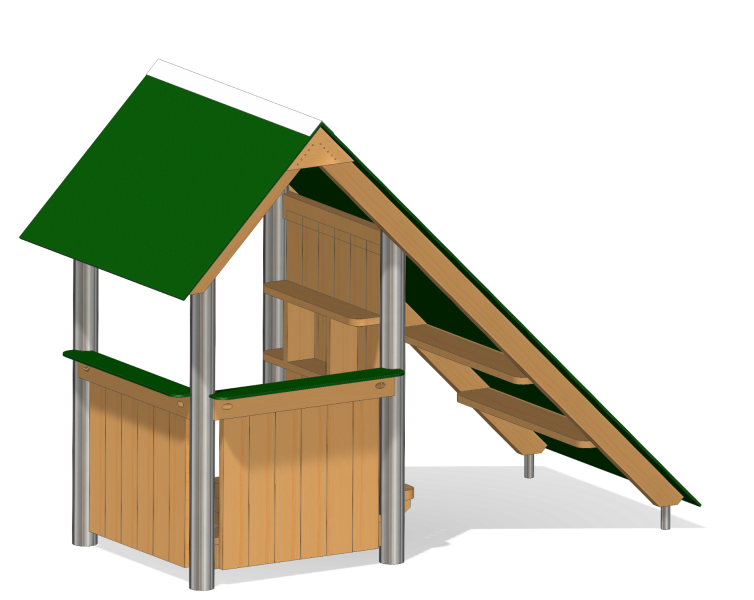

– One square tower measuring 90x90cm with a height of 20cm. It features an asymmetrical spired roof, with one side reaching the ground. The roof is made of HPL (High-Pressure Laminate) and can be customized with colors from our standard HPL color assortment. The tower also includes a stainless steel cap.
– Two shelves
– Two shop displays
– One paneled side
– One seat plank
Proudly Made in Germany!
All support posts are constructed using stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are securely welded to a stainless steel cap.
To ensure environmental protection, all stainless steel surfaces are treated with glass marbles.
All wooden parts are made of Robinia, planed and chamfered. They are left untreated.
The platform and railing are connected to the support posts using stainless steel press-in threaded sleeves.
The platform is fixed in place using concentrically incorporated stainless steel brackets.
The railing is connected to the support posts using diagonal bore countersunk and stainless steel screws with a special key-head theft protection feature.
The pavilion roof is connected to the support posts using individually adjustable stainless steel wing-forks.
All connecting parts are made of stainless steel or galvanized materials. Only self-locking nuts are used.
Please note that drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not qualify as a warranty claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)
Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418
Technical Information
Area
523 x 390 cm
Fall Height Group
25cm
Materials
Material
stainless steel, wood, HPL
