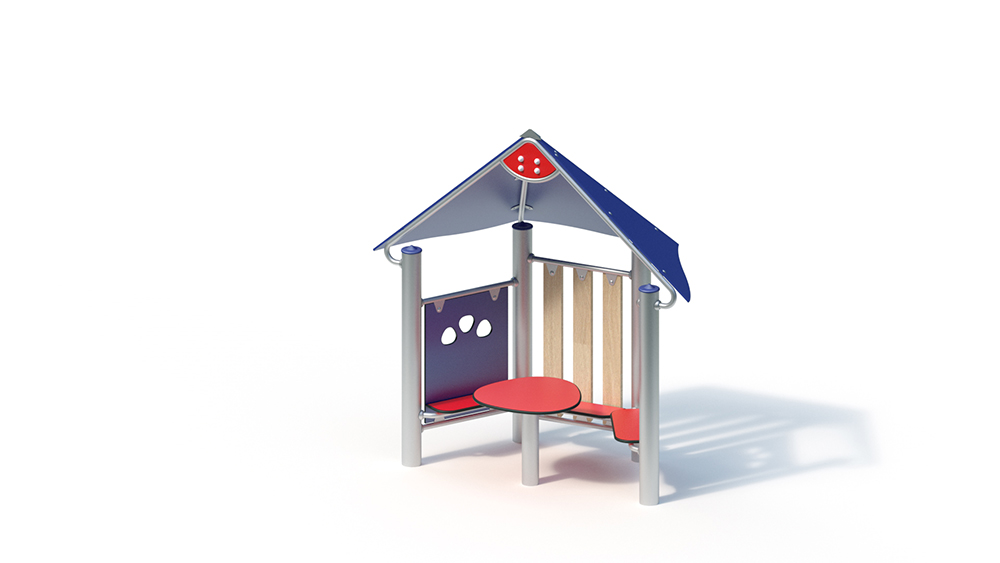

Meeting arbour
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
All Ages,
Public Playgrounds etc.
Social Activities.
Techincal Specifications
Lifting Device
-
Total Length
2.15 m
Total Width
1.25 m
Total Height
2.30 m
Minimum Space Length
5.30 m
Minimum Space Width
4.25 m
Minimum Space Height
2.30 m
Heaviest Single Piece
55.00 kg
(Total) Weight
260.00 kg
Free Height of Fall
0.60 m
Platform Heights
-
Foundations
Foundation 1
5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 1.25 x 2.15 m
Minimum space: 4.25 x 5.30 m (18 m²)
Total height: 2.30 m
Seat height: 0.35 / 0.40 m
Table height: 0.60 m
Weight: 55 kg heaviest single part
260 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Attachment parts
– panel parapet made of highly weather-resistant HPL laminate board (blue) with 3 cutouts in the form of the K&K logo, fastening between stainless steel tubes Ø 33.7 x 2 mm
– wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat and table: made of highly weather-resistant HPL laminate board (red), 20 mm
– Table base stainless steel tube
Metal components: stainless steel
Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.32 m³
