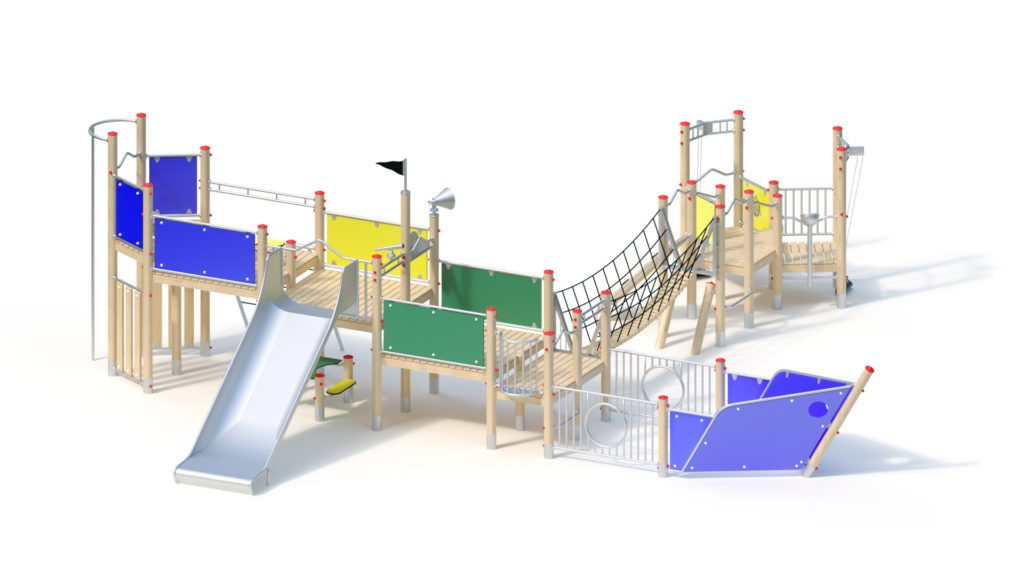

Large Play Ship

Free height of fall
2,10 m

Appropriate for
children from the age of 3 years up,
public playgrounds etc.,
physical activity

10.9m

10.7m

3.35m

14.25m

14.2m

3.35m

135kg

1985kg

2.10m

0,60 m, 0,80 m, 1,00 m, 1,40 m, 1,60 m, 1,80 m, 2,00 m

32 pcs. 0,40 x 0,40 x 0,40 m Volume: 0,07 m3

3 pcs. 0,30 x 0,30 x 0,40 m Volume: 0,04 m3

1 pc. 1,25 x 0,40 x 0,40 m Volume: 0,20 m3

1 pc. 0,50 x 0,50 x 0,50 m Volume: 0,13 m3

1 pc. 1,00 x 0,60 x 0,50 m Volume: 0,24 m3

2

16h

Approximate assembly values 2 mechanics 16 hours each (without creating foundations)

Technical data
Total height: 3,35 m
Area: 10,70 x 10,90 m
Minimum space: 14,20 x 14,25 m (105 m²)
Platform heights: 0,60/0,80/1,00/1,40/1,60/1,80/2,00 m
Slide installation height: 1,40 m
Slide entrance height: 1,50 m
Slide inclination: 36°
Slide width: 1,10 m
Thickness of sliding sheet metal: 2,5 mm

Posts
Laminated Robinia timber Ø 120 mm with cylindrical milling. End-grain surfaces are covered by non-detachable protective stainless steel caps. Stainless steel tubular pedestal for concrete-cast foundation and for fixed mounting to round Robinia posts, Ø 120 mm, below playing surface.

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– bowed guardrail with roll-off prevention, from stainless steel tubes, Ø 33,7 x 2 mm
– tandem guardrail from stainless steel tubes, Ø 33,7 x 2 mm
– stepped guardrail from stainless steel tubes, Ø 33,7 x 2 mm
– timber infill barrier from Robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33,7 x 2 mm
– infill panel from highly weather-resistant coloured HPL (blue, green, yellow), fastening between stainless steel tubes Ø 33,7 x 2 mm
– infill panel for ship’s bow from highly weather-resistant coloured HPL (red), fastening between stainless steel tubes Ø 33,7 x 2 mm
– infill barrier from stainless steel tubes, Ø 33,7 x 2 / 25 x 2 mm, one-piece welded construction
– balcony parapet made from stainless steel tubes
– cranked ladder rung made from stainless steel tubes Ø 33,7 mm
– infill panel from highly weather-resistant coloured HPL (yellow) with sand chute and shutter
– sand pulley with rubber scoop and stainless steel chain, link thickness of 4 mm. Continuous loop construction to block its drawing into adjoining playing areas/free spaces
– sand funnel with stainless steel half-shell
– climb up ramp from Robinia fitted with climbing elements made from HPL
– plank bridge: V-shaped climbing net construction from Hercules ropes, Robinia footbridge with approx. 40 mm clear distance between the planks. Attachment to a steel frame construction. Barrier height approx. 0,75 m.
– sloped scramble up net fixed to stainless steel crossbeam
– vertical climbing pole made from stainless steel tubes Ø 38 mm
– telescope with horizontal rotation by 360°, adjustable in height
– rotating snap-in steering wheel made from stainless steel, low wear, double roller bearing, inner and outer ring from steel tubes Ø 30 x 2 mm, 6 spokes from steel tubes Ø 20 x 2 mm
– megaphone with horizontal rotation by 360°
– rubber flag with fabric insert, for fastening on top of a post
– wave-shaped counter/bench: made from yellow highly weather-resistant HPL panel (20 mm thickness)
– table made from green highly weather-resistant HPL panel (15 mm thickness)
– seats made from yellow highly weather-resistant HPL panel (20 mm thickness)
– wide attachment slide, width 1,10 m, one-piece welded assembly, stainless steel sheet thickness: 2,5 mm, with roll-off prevention above the entrance section

Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to screws with protective screw caps.

For your planning, due to a possible sliding surface heating, please see to a north-east orientation of the slides or provide half-shade of trees.

Foundations (on site)
32 pcs. 0,40 x 0,40 x 0,40 m
3 pcs. 0,30 x 0,30 x 0,40 m
1 pc. 0,40 x 1,25 x 0,40 m
1 pc. 0,50 x 0,50 x 0,50 m
concrete amount: 2,48 m³
