10.3301

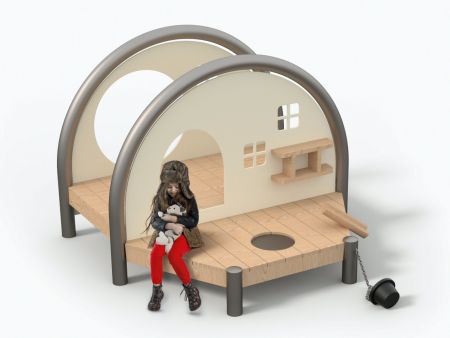

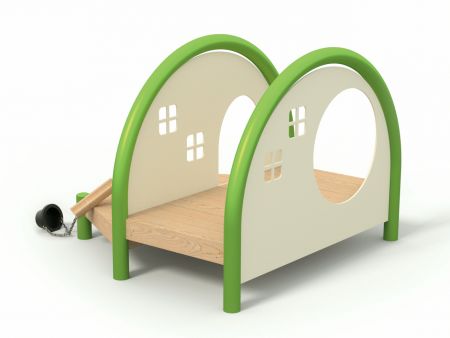

Kobito sand house “Mada”

Kobito sand house is still under construction. It features arches made of stainless steel and the wood used is robinia.

– 1 Kobito stage
– 1 square platform measuring 90x180cm with a height of 40cm
– Kobito wall E5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole, diameter of approximately 75cm, and 2 small square windows with cross bars measuring approximately 18x18cm
– Kobito wall I5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a laterally arched door, width of approximately 50cm, and 2 small square windows with cross bars measuring approximately 18x18cm
– 1 Kobito extension balcony
– 1 hexagon platform, halved with a hole, measuring approximately 78x180cm and a height of 30cm
– 2 stainless steel posts
– 1 play shelf made of robinia with 3 small compartments
– 1 round sieve with a diameter of approximately 30cm, made of perforated stainless steel
– 1 round sand chute made of robinia
– 1 stainless steel chain with a rubber bucket, attached to the post

This product is proudly made in Germany! All arches are made of stainless steel tube with a diameter of 101.6mm and a thickness of 3mm. The support posts are made of stainless steel tube with a diameter of 101.6mm and a thickness of 2mm. The visible ends of the posts are conclusively welded to a stainless steel cap. All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations. The connection between the platform/balcony and support posts is achieved through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets. All wooden parts are made of planed and chamfered robinia. They are left untreated. All connecting parts are made of stainless steel or galvanized materials. Only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Please refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)

User Age0-5 years
Download Product Sheet

Technical Information

Area

478 x 490 cm

Fall Height Group

100 cm

Materials

Material

stainless steel, wood, HPL
