Jumping disc

Key Attributes

Age Group


Area of Use

Public Playgrounds


Physical Activity

Suitable for

Suitable for
children from 3 years,
public playgrounds,
exercise activities

Techincal Specifications

Lifting Device


Total Length

1.00 m

Total Width

1.00 m

Total Height

0.35 m

Minimum Space Length

4.00 m

Minimum Space Width

4.00 m

Minimum Space Height

0.35 m

Heaviest Single Piece

113.00 kg

(Total) Weight

170.00 kg

Free Height of Fall

0.35 m

Platform Heights



Foundation 1


Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter 1 hour

Technical Data

Technical data
Base area: Ø 1.00 m
Minimum space: Ø 4.00 m (13 m²)
Height: 0.36 m
Weight: 113 kg heaviest individual part
170 kg in total

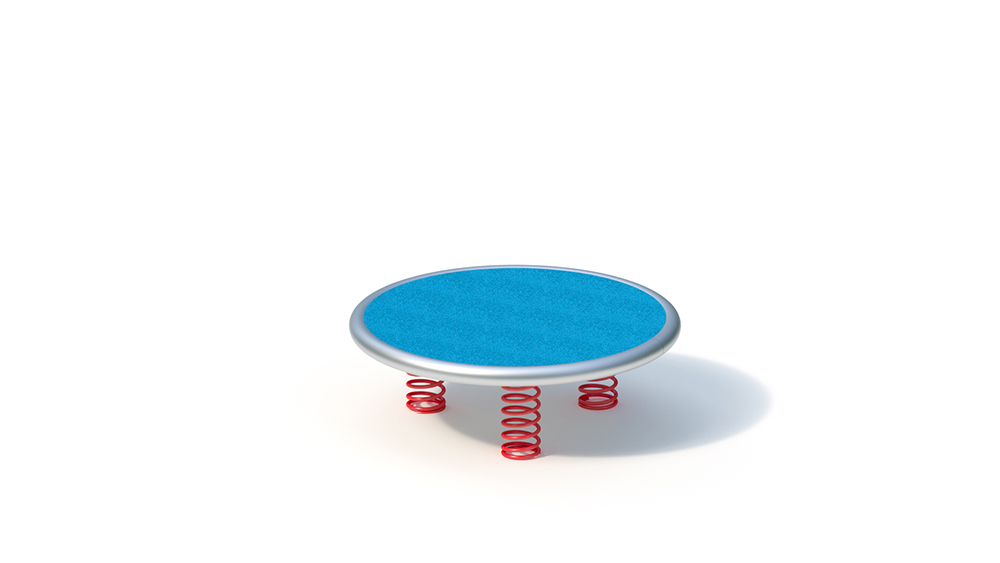

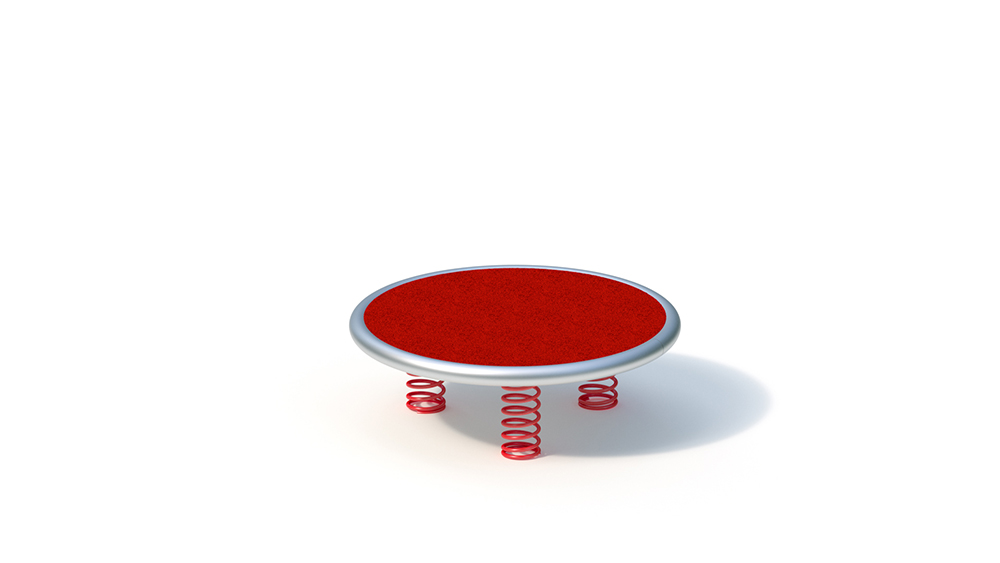

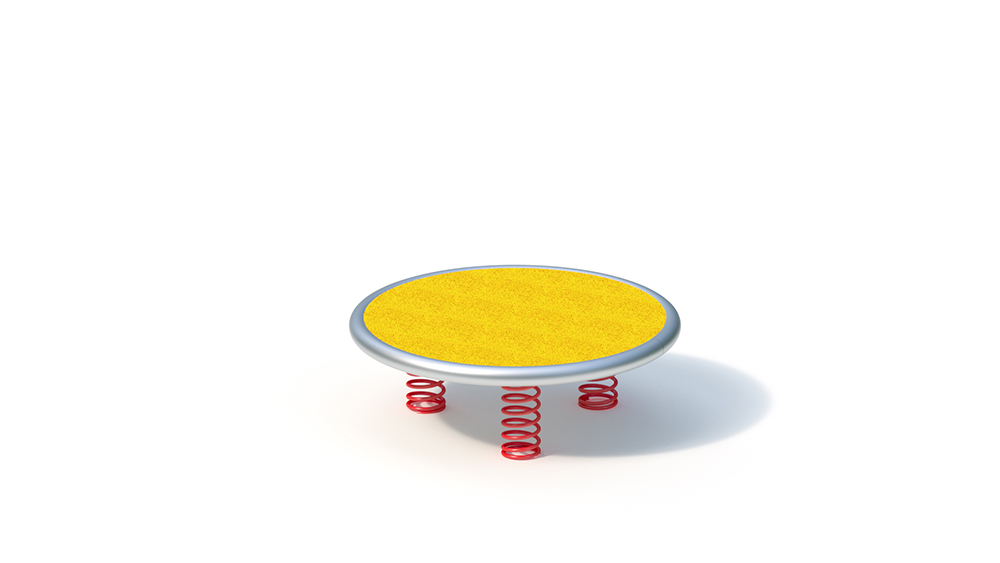

Rubber-coated stainless steel round plate mounted on 3 coil springs, including prefabricated foundation (round). Rubber granulate color optionally: red, green, blue and yellow.
Compression spring: special spring wire Ø 12 mm

Free fall height
0.35 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
