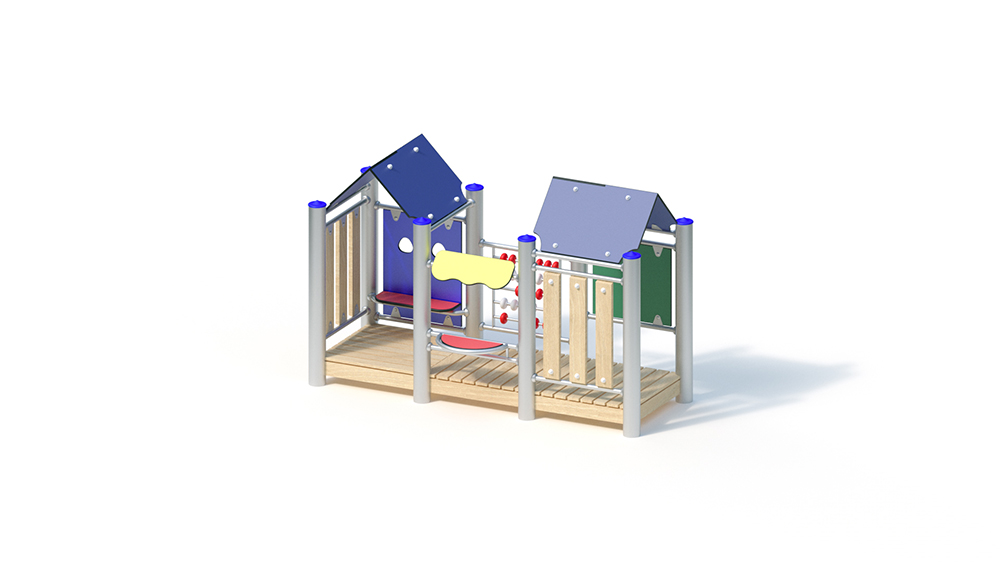

Health food store
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.,
social activities.
Techincal Specifications
Lifting Device
-
Total Length
2.55 m
Total Width
1.15 m
Total Height
1.65 m
Minimum Space Length
5.55 m
Minimum Space Width
4.15 m
Minimum Space Height
1.65 m
Heaviest Single Piece
30.00 kg
(Total) Weight
320.00 kg
Free Height of Fall
1.63 m
Platform Heights
0.20 m
Foundations
Foundation 1
8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 2.5 hours (without foundation creation)
Technical Data
Technical data
Total height: 1.65 m
Base area: 1.15 x 2.55 m
Minimum space: 4.15 x 5.55 m
Platform height: 0.20 m
Weight: 30 kg, heaviest individual part,
350 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– Parapet made of highly weather-resistant HPL laminate board (blue / green)
– Wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Table / awning: made of highly weather-resistant HPL laminate board 15 mm (red / yellow)
– Seat: made of highly weather-resistant HPL laminate board, 15 mm (red)
– pitched roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– slide rule: elements made of polyamide, Ø 80 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
anchoring by ramming or
8 pcs. Foundations 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³
Free fall height
1.63 m
