8S-170623-43

“Grass Cabin Cologne”

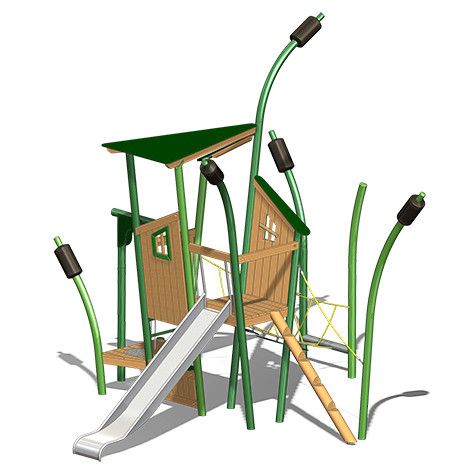

Grass Cabin Cologne
Order Number: 8S-170623-43
Posts constructed from stainless steel
Robinia wood

– One square stage with a platform height (PH) of 150cm, featuring inclined support posts made of stainless steel and a roof consisting of three small HPL elements.
– One half gable with a window.
– One slide without a seat piece, box-shaped, with a platform height (PH) of 150cm, made of stainless steel.
– One chicken ladder, attached to a single support post made of stainless steel, with a safety rope made of Hercules rope.
– One square stage with a platform height (PH) of 130cm, featuring inclined support posts.
– One balustrade with a window.
– One balustrade with an opening.
– One counter located beneath the platform.
– One rope bridge with rubber steps.
– One platform for sand play with a platform height (PH) of 55cm, supported by an inclined support post.
– One sand crane, turnable, equipped with a sand pulley and a rubber bucket.
– One sieve.
– Seven curved support posts made of stainless steel, five of which have bulrush made of stainless steel.

No color design included.

Made in Germany!
All support posts are constructed from stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are securely welded to stainless steel caps.
All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made of Robinia, planed and chamfered. They remain untreated.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made using specifically formed stainless steel forks and tensile stainless steel chains.
The nets are made of Hercules rope. Please note that different color nuances may occur when using hemp-colored ropes.
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a claim under warranty. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)

User Age3 - 6
Download Product Sheet

Technical Information

Area

735 x 862 cm

Fall Height Group

150 cm

Materials

Material

stainless steel, wood, HPL
