0-41456-001

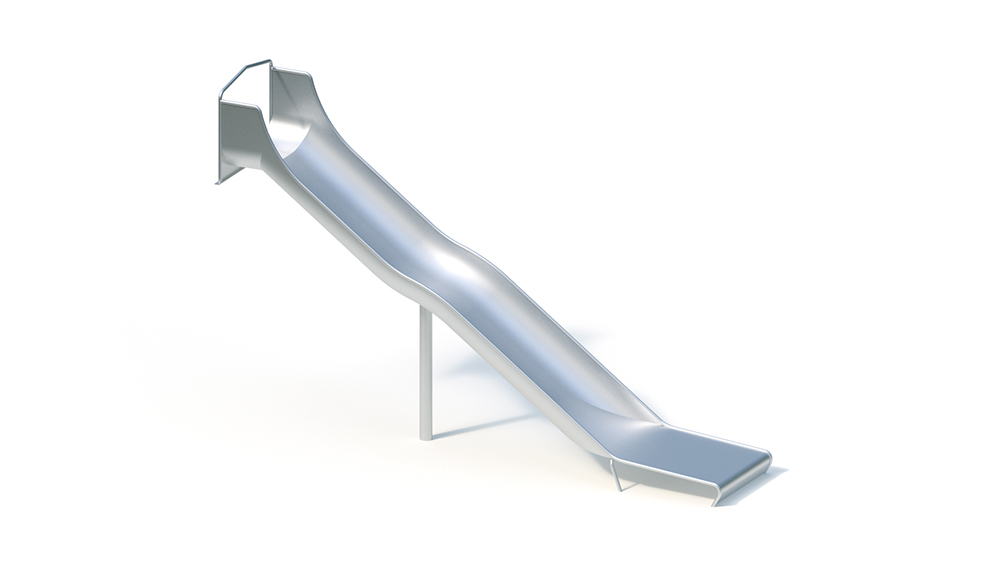

Extension wide slide (2.40)

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

5.25 m

Total Width

1.10 m

Total Height

3.40 m

Minimum Space Length

8.75 m

Minimum Space Width

4.75 m

Minimum Space Height

4.00 m

Heaviest Single Piece

280.00 kg

(Total) Weight

280.00 kg

Free Height of Fall

2.50 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.25 x 0.90 x 0.40 m volume: 0.45 m3

Foundation 2

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Floor area: 1.10 x 5.25 m
Minimum space: 5.45 x 8.75 m Attachment
height: 2.40 m
Seat height: 2.50 m Slide incline
: 36 °
Slide plate thickness : 2.5 mm Slide width
: 1.10 m
Weight: 280 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Speed ​​regulation by shaft. Particularly quiet thanks to the shape of the recess.
Please note that in the area of ​​the flange on the slide seat there must be a suitable surface (wooden platform or planks, concrete foundation or similar) on site.

Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 1.25 x 0.40 m
amount of concrete: 0.55 m³

Free height of fall
max. 2.50 m
