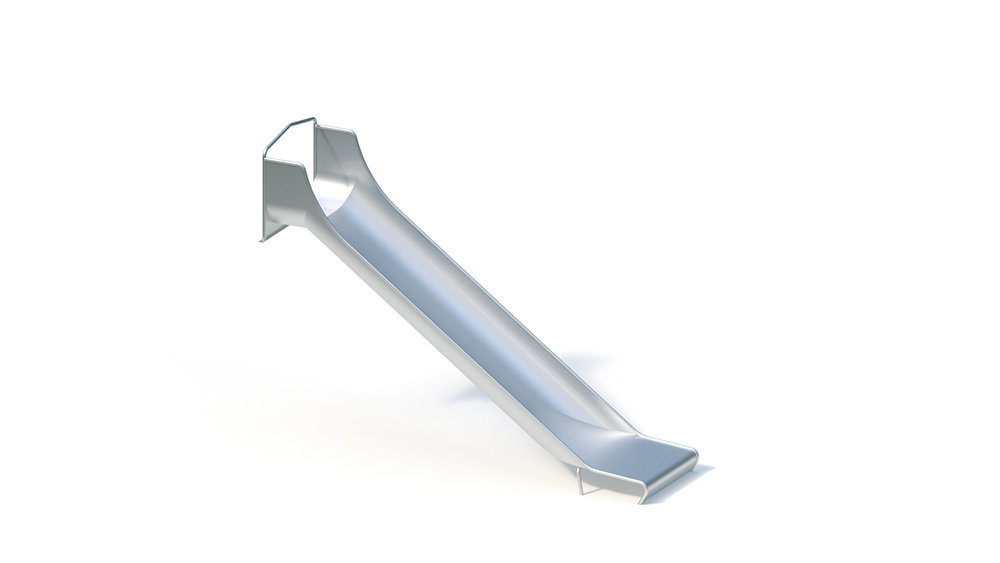

Extension wide slide (2.00)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 4 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device


Total Length

4.05 m

Total Width

1.10 m

Total Height

3.00 m

Minimum Space Length

7.55 m

Minimum Space Width

4.90 m

Minimum Space Height

3.60 m

Heaviest Single Piece

165.00 kg

(Total) Weight

165.00 kg

Free Height of Fall

2.10 m

Platform Heights



Foundation 1

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Floor area: 1.10 x 4.05 m
Minimum space: 4.90 x 7.55 m Extension
height: 2.00 m
Sitting height: 2.10 m Slide inclination
: 36 °
Slide plate thickness : 2.5 mm Slide width
: 1.10 m
Weight: 165 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. Please note that in the area of ​​the flange on the slide seat, a suitable surface (wooden platform or planks, concrete foundation, etc.) must be available on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.20 m³

Free fall height
max. 2.10 m
