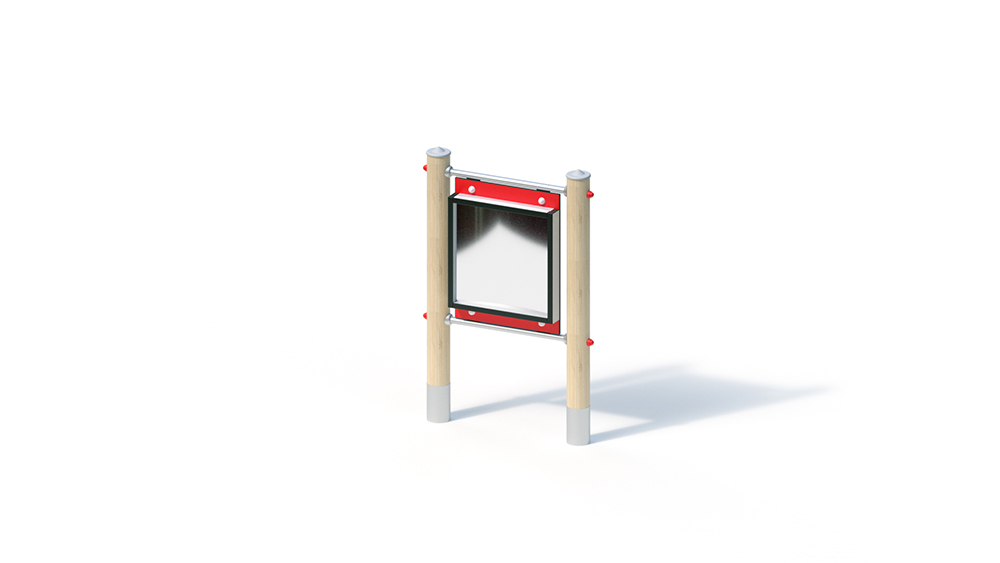

Distorting mirror (concave)
Area of Use
Minimum Space Length
Minimum Space Width
Minimum Space Height
Heaviest Single Piece
Free Height of Fall
2 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3
Number of Installers
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Floor area: 0.25 x 0.95 m
Minimum space: 3.95 x 3.20 m
Total height: 1.50 m
Weight: 40 kg heaviest individual part
75 kg in total
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
– concave mirror made of highly polished stainless steel in an HPL frame
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.19 m³
