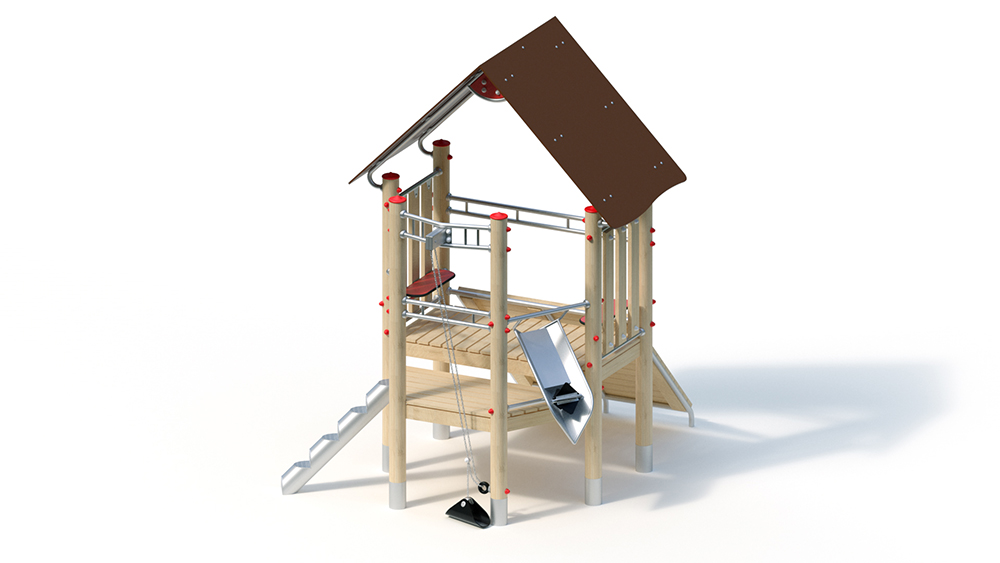

Combination sanding

5+

Public Playgrounds

Social

Suitable for ages 5+,
public playgrounds, etc.
manual / exercise activities.

-

2.90 m

2.45 m

3.25 m

5.85 m

5.40 m

3.25 m

100.00 kg

525.00 kg

1.00 m

0.80 m, 1.00 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

4 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

-

-

-

-

2 pers.

6 h

Installation time 2 fitters 6 hours each (without foundation creation)

Technical data
Total height: 3.25 m
Base area: 2.45 x 2.90 m
Minimum space: 5.40 x 5.85 m (27 m²)
Platform height: 0.80 / 1.00 m
Weight: 100 kg Heaviest individual part
525 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Climbing posts made of stainless steel tube Ø 159 x 3 mm, step surface made of profiled stainless steel
sheet – Climbing wall made of robinia wood with attached climbing elements made of HPL laminate
board – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube , Ø 33 , 7 x 2 mm
– Robinia wood balustrade, 120 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– Seat: made of colored, highly weather-resistant HPL laminate
board , 20 mm – Sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container does not enter adjacent play areas or open spaces can be drawn
– Step channel with sand wheel made of rubber with fabric insert – Gable
roof, inclination 45 °, made of brown, highly weather-resistant HPL laminate board, 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
4 pieces. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.53 m³

Free fall height
1.00 m
