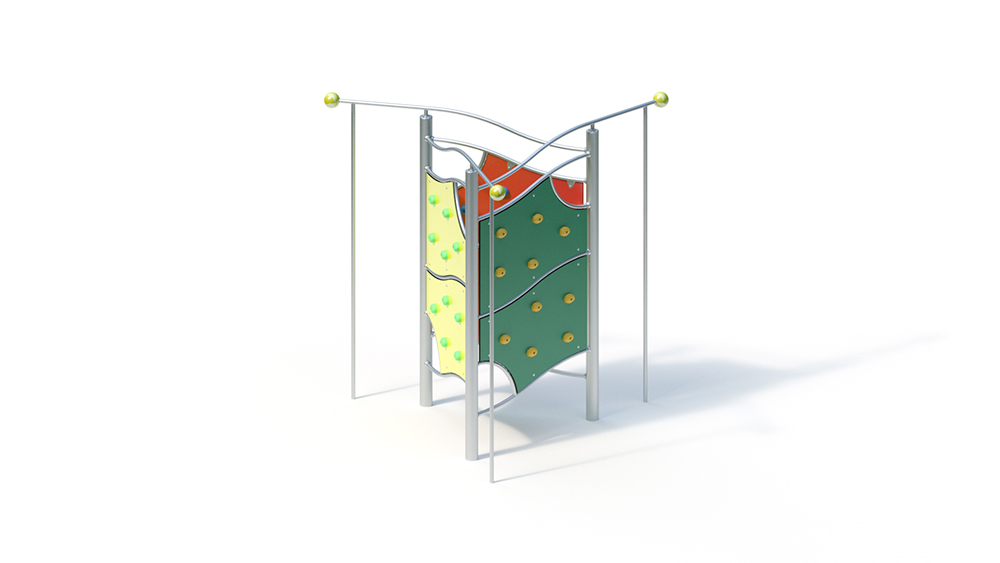

Climbing tower
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
3.11 m
Total Width
3.10 m
Total Height
3.00 m
Minimum Space Length
8.40 m
Minimum Space Width
8.40 m
Minimum Space Height
3.10 m
Heaviest Single Piece
82.00 kg
(Total) Weight
450.00 kg
Free Height of Fall
3.00 m
Platform Heights
-
Foundations
Foundation 1
3 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly times 2 fitters each 3 hours (without creating the foundation)
Technical Data
Technical data
Floor area: 3.11 x 3.10 m
Minimum space: Ø 8.68 m (59.2 m²)
Total height: 3.00 m
Weight: 82 kg heaviest individual part
450 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm
Attachments
– Klimstangen stainless steel tube, Ø 38 x 3 mm
– climbing plates swinging 1.60 m, made of highly weather-resistant HPL plate, red, yellow and green, in a frame made of stainless steel tube; With free
climbing elements made of PE screwed on on both sides (level of difficulty: easy / medium / difficult)
– hollow ball Ø 150 mm, powder-coated and stove-enamelled, yellow / RAL 1021
Metal components: stainless steel. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
3 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.30 m³
Free fall height
3.00 m
