7S-201120-21

“Climbing combination Layers Madrid”

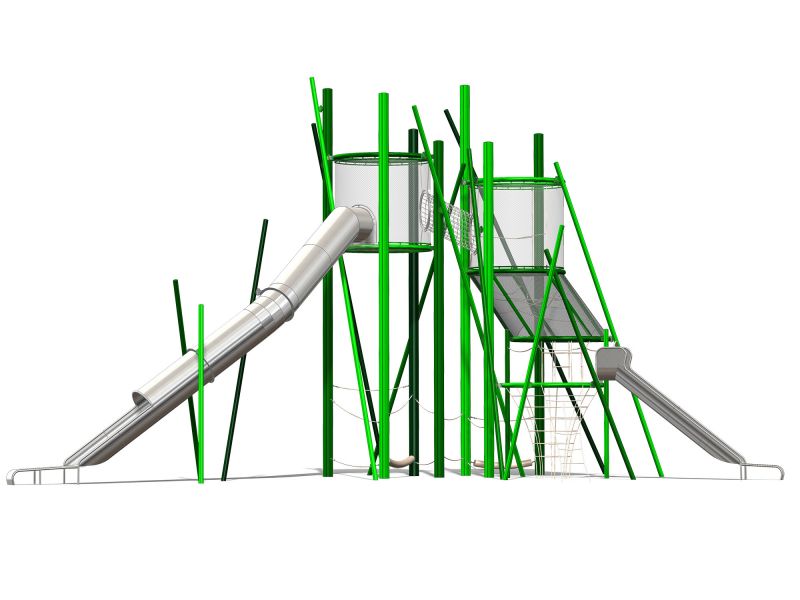

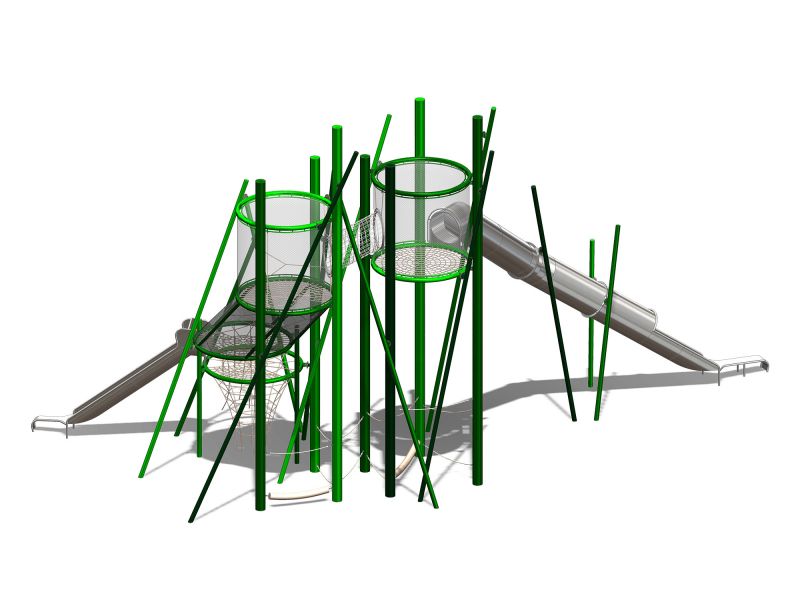

Layers in Madrid consist of various components made from high-quality materials. The support posts are constructed using stainless steel tubes, ensuring durability and strength. The visible ends of the posts are expertly welded to stainless steel caps, providing a seamless finish. All stainless steel surfaces are treated with glass marbles in compliance with environmental protection regulations.

The layers include 21 stainless steel posts with diameters of Ø101.6mm and Ø219.3mm. These posts are designed to withstand heavy use and provide stability. Additionally, there are six stainless steel rings with heights ranging from approximately 200cm to 700cm. The rings have a diameter of approximately 200cm and feature sides made of dralo wire cable netting.

For climbing enthusiasts, there is an inclined climbing net and a net chimney, both made from Hercules rope. These elements offer a challenging and exciting experience for users. Furthermore, there is a net layer with an opening, approximately Ø200cm in diameter, also made from Hercules rope. This net layer adds an element of fun and creativity to the layers.

To ensure safety, there are several handrails made from Hercules rope. These handrails provide support and stability for users as they navigate the layers. Additionally, there is a u-shaped slide made from stainless steel, featuring a safety exit. This slide, with a height of 200cm, offers a thrilling ride for children.

The layers also include a net chimney, a tunnel, and a net layer with openings, all made from Hercules rope. These elements are designed to enhance the play experience and provide opportunities for exploration and imagination. The tunnel is made from a stainless steel gutter and spans various heights, from 300cm to 500cm.

To promote balance and coordination, there are two balance ropes made from Polypropylene (PP) between the posts. These ropes, with a diameter of 14cm and a length of approximately 200cm, offer a challenging balancing activity. Additionally, there are several balance and safety ropes made from Hercules rope, providing additional support and safety measures.

All connecting parts within the layers are made from stainless steel or galvanized materials, ensuring durability and longevity. Self-locking nuts are exclusively used to secure the components, further enhancing safety.

Layers in Madrid are proudly made in Germany, showcasing the highest standards of craftsmanship and quality.

User Age8-12
Download Product Sheet

Technical Information

Area

1197 x 1866 cm

Fall Height Group

300 cm

Materials

Material

stainless steel
