0-21634-701

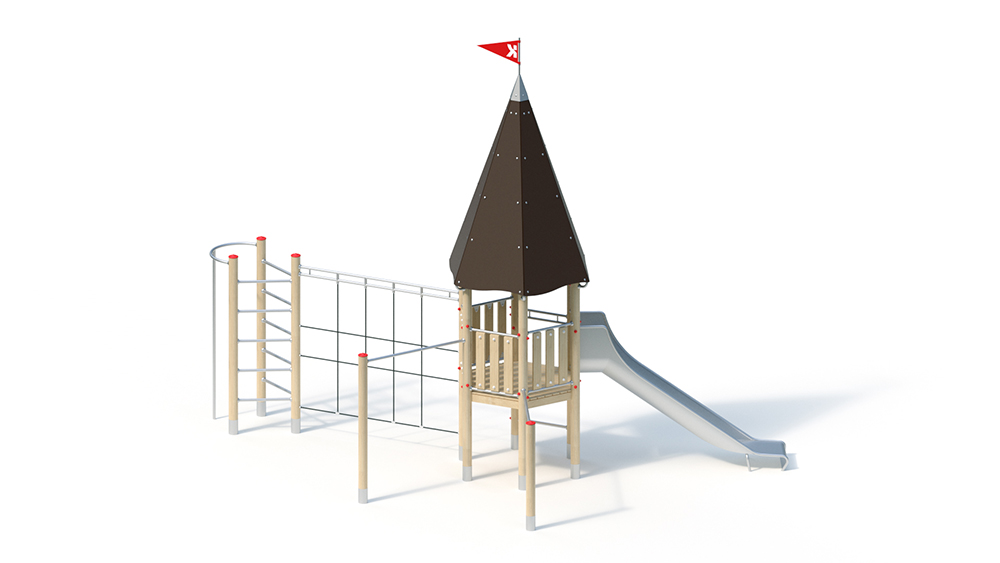

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

7.50 m

Total Width

4.10 m

Total Height

5.85 m

Minimum Space Length

11.60 m

Minimum Space Width

7.25 m

Minimum Space Height

5.85 m

Heaviest Single Piece

85.00 kg

(Total) Weight

555.00 kg

Free Height of Fall

2.32 m

Platform Heights

1.20 m

Foundations

Foundation 1

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

11 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

11 h

Assembly Details

Installation time 2 fitters 11 hours each (without foundation creation)

Technical Data

Technical data
Equipment room: 4.10 x 7.50 x 5.85 m
Minimum room: 7.25 x 11.60 x 5.85 m
Impact area: 60 m²
Total height: 5.85 m
Free fall height: 2.32 m
Platform height: 1 , 20 m
seat height: 1.30 m
bar heights: 1.35 / 1.90 m
weight: 85 kg heaviest single part
555 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Tandem railing made from stainless steel tube, Ø 33.7 x 2 mm
– Tower roof, inclination 72 °, made of highly weather-resistant HPL laminate board (brown), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– tower flag, rotatable
– horizontal bar made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
– vertical handle as a climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
– climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
– climbing net made of Hercules rope on stainless steel crossbar
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
11 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.86 m³
