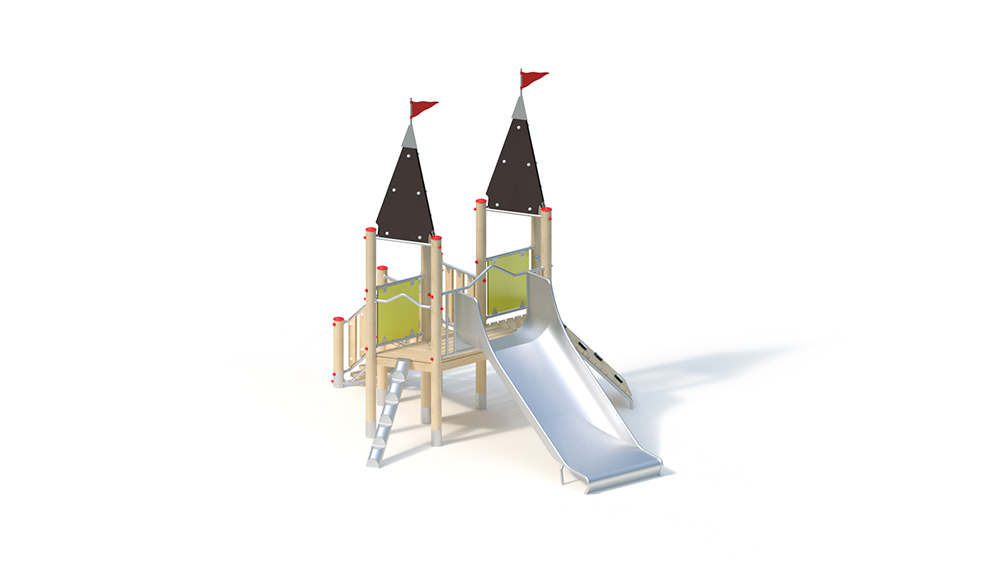

Climbing combination

3+

Public Playgrounds

Slide

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities

-

4.82 m

3.95 m

4.06 m

8.31 m

6.93 m

4.06 m

110.00 kg

690.00 kg

1.10 m

0.80 m, 1.00 m

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Total height: 4.06 m
Base area: 3.92 x 4.82 m
Minimum space: 6.93 x 8.31 m (37 m²)
Platform height: 0.80 /
1.00 m
Slide installation height: 1.00 m Seat height: 1.10 m
Weight: 110 kg heaviest single part
745 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Wooden balustrade made of robinia, 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– Panel balustrade made of highly weather-resistant HPL laminate board (yellow), attachment between Stainless steel tubes Ø 33.7 x 2 mm
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, height of the steps 133 mm
– stair balustrade made of robinia wood, fastened between stainless steel tubes Ø 33.7 x 2 mm
– climbing wall made of robinia wood with attached climbing elements made of HPL laminate
board – climbing posts made of stainless steel tube Ø 159 x 3 mm, step surface made of profiled stainless steel sheet
– Tower roof, inclination 80 °, made of highly weather-resistant HPL laminate board (brown), 13 mm
–
Tower flag, corrugated – Extension wide slide, 1.10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
amount of concrete: 0.95 m³

Free fall height
1.10 m
