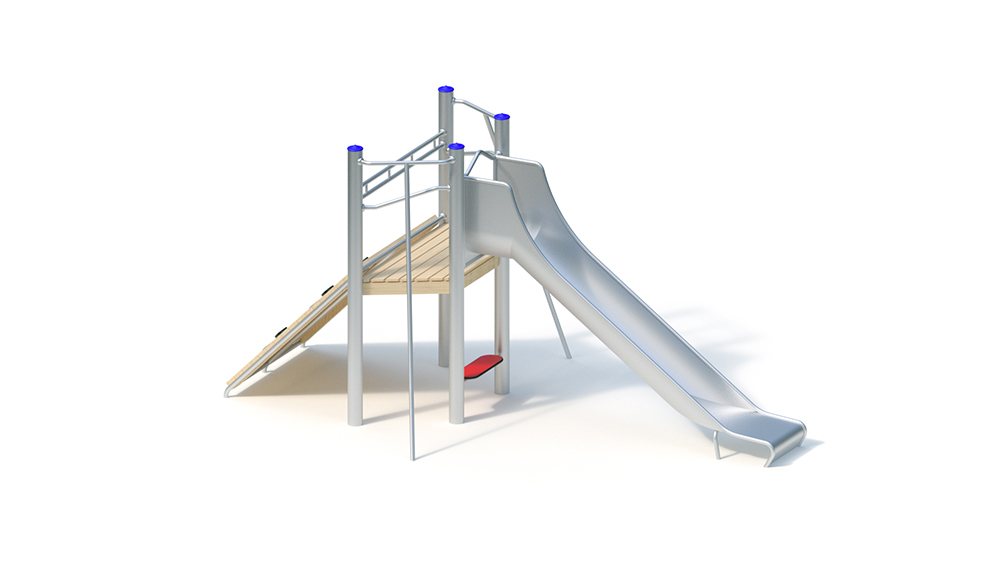

Climbing combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
4.65 m
Total Width
2.80 m
Total Height
2.35 m
Minimum Space Length
8.20 m
Minimum Space Width
5.80 m
Minimum Space Height
2.35 m
Heaviest Single Piece
120.00 kg
(Total) Weight
380.00 kg
Free Height of Fall
1.30 m
Platform Heights
1.20 m
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3
Foundation 3
5 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Total height: 2.35 m
Base area: 2.80 x 4.65 m
Minimum space: 5.80 x 8.20 m (33 m²)
Platform height
: 1.20 m
Slide extension height: 1.20 m Sitting height: 1.30 m
Weight: 120 kg heaviest single part,
380 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– Kraxelwand from locust wood with attached climbing elements from HPL plate
– stages handrails of stainless steel pipe, Ø 33.7 x 2 mm
– climbing pole of steel pipe, Ø 38 mm
– Seat: highly weather resistant HPL laminate
board (red), 20 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll fall protection above the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
5 pieces. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.56 m³
Free fall height
1.30 m
