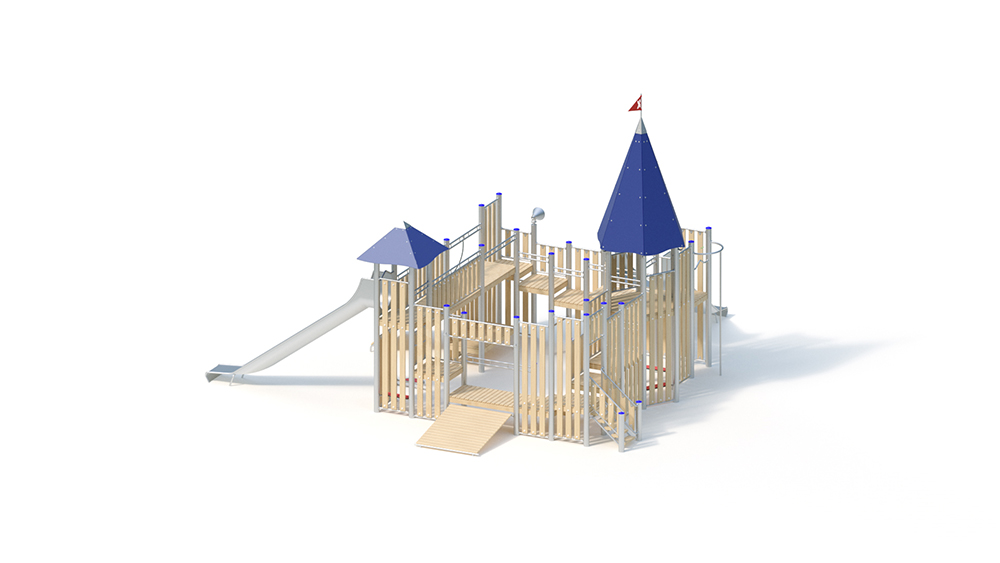

Climbing combination

-+

Public Playgrounds

Slide

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities

Y

10.25 m

9.70 m

6.55 m

13.75 m

13.20 m

6.55 m

190.00 kg

3105.00 kg

2.10 m

0.60 m, 1.20 m, 1.40 m, 1.60 m, 1.80 m, 2.00 m, 1.00 m, 0.80 m, 0.50 m

37 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

7 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

-

-

2 pers.

18 h

Assembly time 2 fitters 18 hours each, plus lifting gear (without creating the foundation)

Technical data
Floor area: 9.70 x 10.25 m
Minimum space: 13.20 x 13.75 m (131 m²)
Total height: 6.55 m
Platform height: 0.50 to 2.00 m
Seat height: 1.50 / 2, 10 m
weight: 190 kg heaviest single part
3105 kg in total

Support
posts Support posts made of stainless steel tube Ø 12 cm covered with non-detachable post caps made of stainless steel

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
– ramp made of robinia wood with drawbridge chain made of stainless steel
– extension stairs with steps made of robinia 160 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Incline height of the steps 133 mm
– Banister made of stainless steel tube, Ø 33.7 x 2 mm, twist-proof
– Seat and table: made of highly weather-resistant HPL laminate board (red), 20/15 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the seat part
– Climbing pole and climbing rungs made of stainless steel tube , Ø 38 mm
– Megaphone can be rotated horizontally 360 °
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel hood
– tower roof, inclination 75 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm
– tower flag, rotatable
– add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
7 pcs. 0.30 x 0.30 x 0.40 m
37 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 2.94 m³

Free fall height
2.10 m
