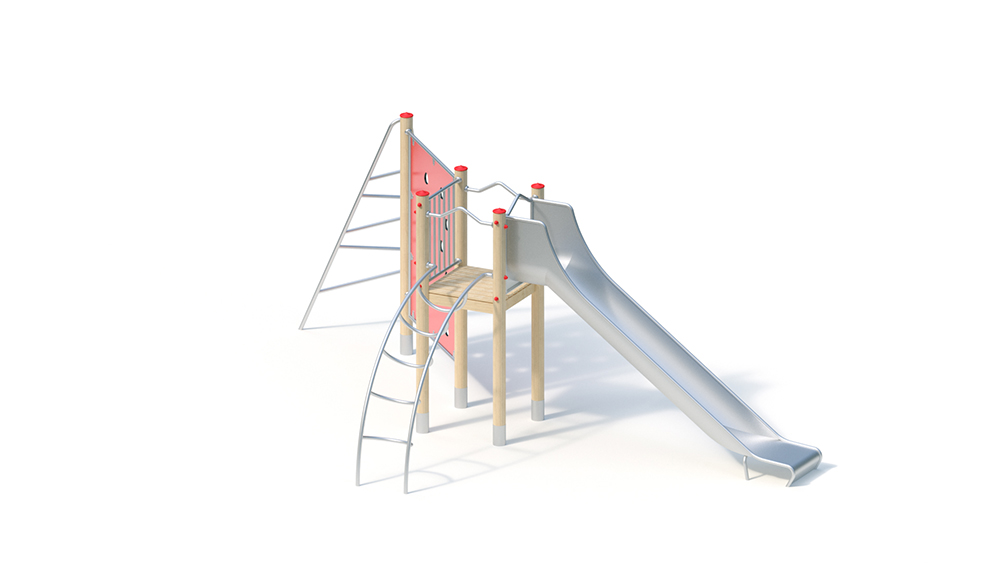

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

-

6.20 m

4.85 m

2.40 m

9.70 m

7.85 m

2.90 m

90.00 kg

360.00 kg

2.30 m

1.40 m

4 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

5 h

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical data
Floor area: 4.85 x 6.20 m
Minimum space: 7.85 x 9.70 m (45 m²)
Total height: 2.40 m
Platform height: 1.40 m
Sitting height: 1.50 m
Weight: 90 kg heaviest individual part
360 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– lattice
balustrade made of stainless steel tube, Ø 33.7 x 2/25 x 2 mm, one-piece welded construction – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– climbing wall made of HPL laminate board (red) frame made of stainless steel tube, 12 climbing openings
– Arched ladder made of stainless steel pipe – Triangular wall bars made of stainless steel pipe
, Ø 38 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.30 x 0.30 x 0.40 m
5 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.58 m³

Free fall
2.30 m
