0-22620-703

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

Y

Total Length

6.50 m

Total Width

5.70 m

Total Height

4.30 m

Minimum Space Length

10.00 m

Minimum Space Width

8.60 m

Minimum Space Height

4.30 m

Heaviest Single Piece

130.00 kg

(Total) Weight

930.00 kg

Free Height of Fall

2.10 m

Platform Heights

0.80 m, 1.00 m, 2.00 m

Foundations

Foundation 1

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

2 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 3

1 piece - 0.60 x 0.40 x 0.40 m volume: 0.10 m3

Foundation 4

1 piece - 0.90 x 0.75 x 0.40 m volume: 0.27 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

8 h

Assembly Details

Assembly time 2 fitters 8 hours each, plus lifting equipment (without foundation creation)

Technical Data

Technical data
Total height: approx. 4.30 m
Base area: approx. 5.70 x 6.50 m
Minimum space: approx . 8.60 x 10.00 m (54 m²)
Platform height: 0.80 / 1.00 / 2, 00 m Slide installation height
: 2.00 m
Seat height: 2.10 m Slide inclination:
36 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm
Weight: 130 kg Heaviest individual part
930 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachments
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– wood balustrade locust, 120 x 30 mm, fixing between the stainless steel tubes Ø 33,7 x 2 mm
– ladder with stainless steel rungs – climbing rungs made of stainless steel tube
, Ø 38 mm, twist-proof
– vertical handle as a climbing
aid made of stainless steel tube , Ø 33.7 x 2 mm – climbing wall made of robinia wood with attached climbing elements made of HPL laminate board.
– Footbridge: V-shaped net construction made of Hercules rope, catwalk made of wooden rungs with approx. 40 mm clear rung spacing, attachment to steel frame construction, parapet height approx. 0.75 m
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (red), 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm.

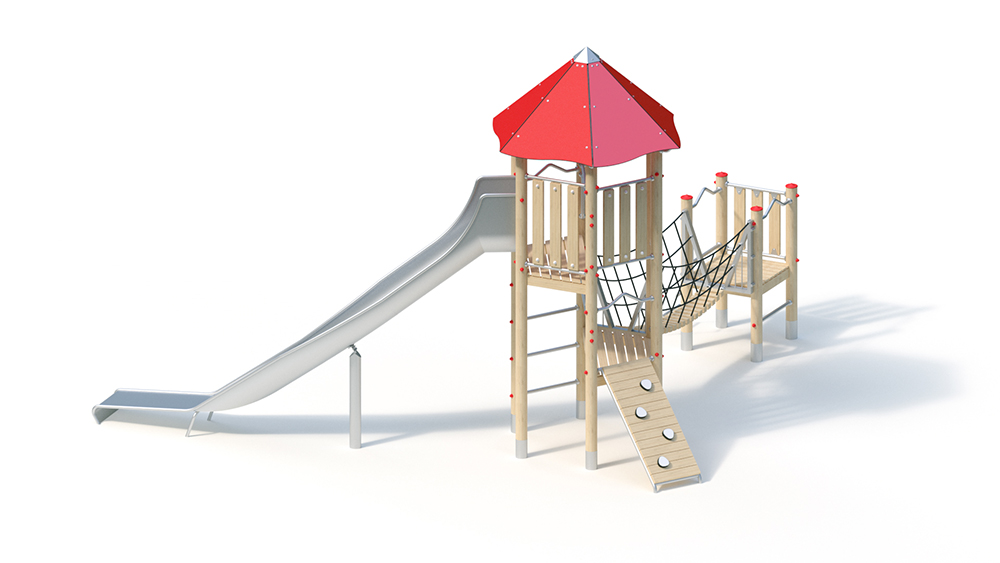

K&K landslide 36 ° Ah 2.00 m
slide segments made of stainless steel thanks to the trough shape, particularly quiet, welded to a one-piece slide.
Course: curve 27 ° right
Including K&K landslide support post for the curve area and mounting flange, each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.30 x 0.30 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 1.08 m³

Free fall height
2.10 m
