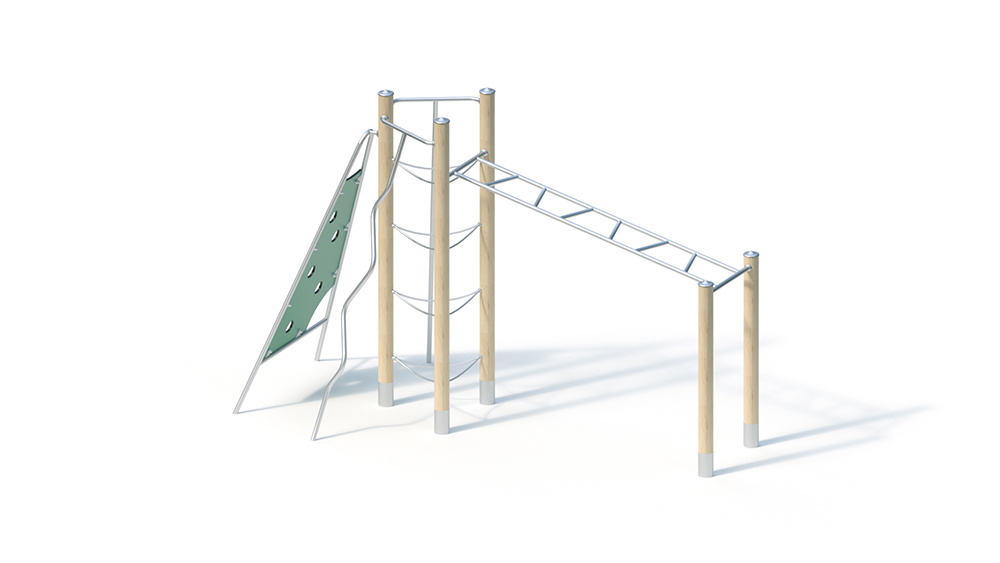

Climbing combination
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.
sports activities.
Techincal Specifications
Lifting Device
-
Total Length
4.10 m
Total Width
2.15 m
Total Height
2.65 m
Minimum Space Length
7.20 m
Minimum Space Width
5.55 m
Minimum Space Height
2.65 m
Heaviest Single Piece
30.00 kg
(Total) Weight
180.00 kg
Free Height of Fall
2.52 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Total height: 2.65 m
Base area: 2.15 x 4.10 <m
Minimum space: 5.40 x 7.17 m (21 m²)
Weight: 30 kg heaviest individual part
180 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Attachment parts
– Climbing
pole made of stainless steel tube , Ø 38 mm – Hang ladder made of stainless steel tube Ø 38 x 2.5 mm – Climbing triangle made
of Hercules rope, Ø 16 mm
– Triangular climbing wall made of highly weather-resistant HPL laminate board, 20 mm. Frame made of stainless steel tubing, climbing openings
Metal components: stainless steel
Foundations (on site)
4 pcs. 0.30 x 0.30 x 0.40 m
5 pieces. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.46 m³
Free fall height
2.52 m
