0-21126-500

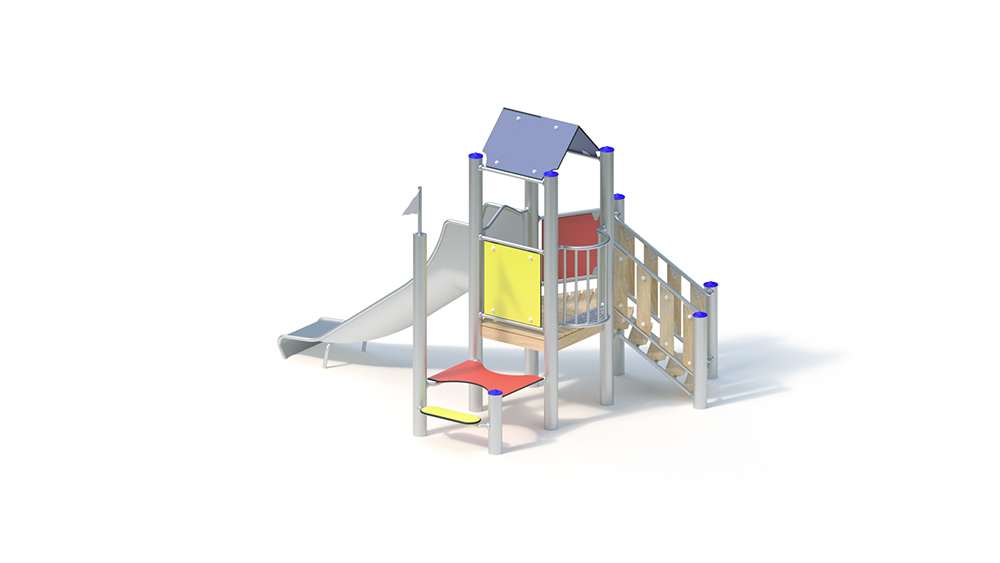

Climbing combination

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Physical

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

3.75 m

Total Width

3.20 m

Total Height

2.65 m

Minimum Space Length

7.25 m

Minimum Space Width

6.20 m

Minimum Space Height

2.65 m

Heaviest Single Piece

75.00 kg

(Total) Weight

470.00 kg

Free Height of Fall

0.90 m

Platform Heights

0.80 m

Foundations

Foundation 1

9 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.65 m
Base: 3.20 x 3.75 m
Minimum space: 6.20 x 7.25 m (29 m²)
Platform height: 0.80 m
Sitting height: 0.90 m

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Parapet made of highly weather-resistant HPL laminate board (red / yellow), fastening between stainless steel pipes Ø 33.7 x 2 mm
– Balcony balustrade made of stainless steel
pipe
– Stair balustrade made of robinia wood, fastened between stainless steel pipes Ø 33.7 x 2 mm – Extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, incline height of the steps 133 mm
– table: made of highly weather-resistant HPL laminate board (red), 15 mm
– seat: made of highly weather-resistant HPL laminate board (yellow) , 20 mm
– rubber flag with fabric insert for attachment to the post
– Saddle roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2, 5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
9 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.76 m³

Free fall height
0.90 m
