0-55390-501

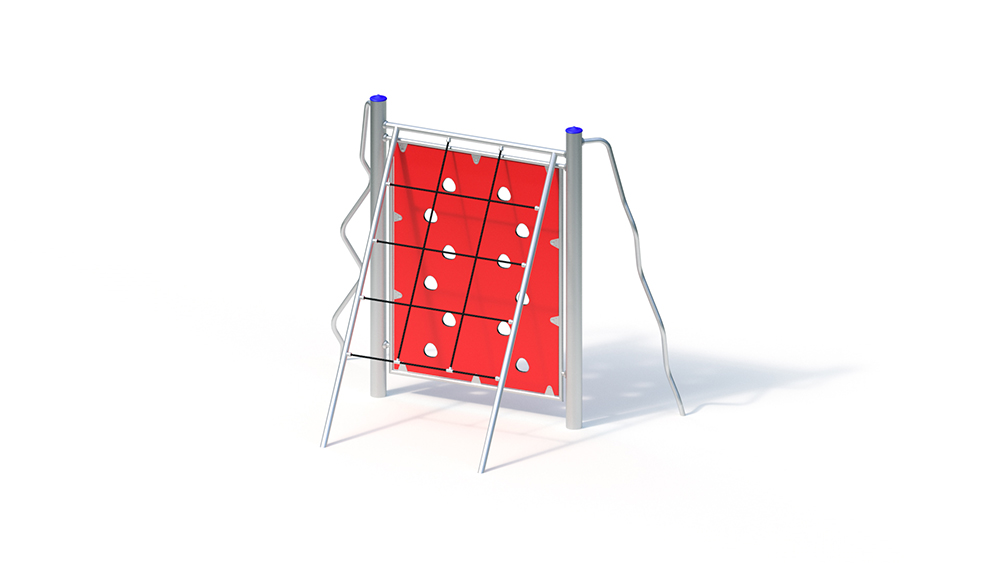

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Sport

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.
sports activities.

Techincal Specifications

Lifting Device

-

Total Length

2.85 m

Total Width

1.85 m

Total Height

2.35 m

Minimum Space Length

5.85 m

Minimum Space Width

4.85 m

Minimum Space Height

2.35 m

Heaviest Single Piece

60.00 kg

(Total) Weight

160.00 kg

Free Height of Fall

2.15 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

2 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Floor area: 1.85 x 2.85 m
Minimum space: 4.85 x 5.85 m (24 m²)
Total height: 2.35 m
Weight: 60 kg heaviest individual part
160 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Attachments
– Climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, frame made of stainless steel tube, 12 climbing openings
– Enternnet made of Hercules rope on stainless steel traverse
– inclined climbing pole , corrugated, inclination 15 °, made of stainless steel

Metal components: stainless steel The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
2 pcs. 0.30 x 0.30 x 0.40 m
2 pieces. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.26 m³

Free fall height
2.22 m
