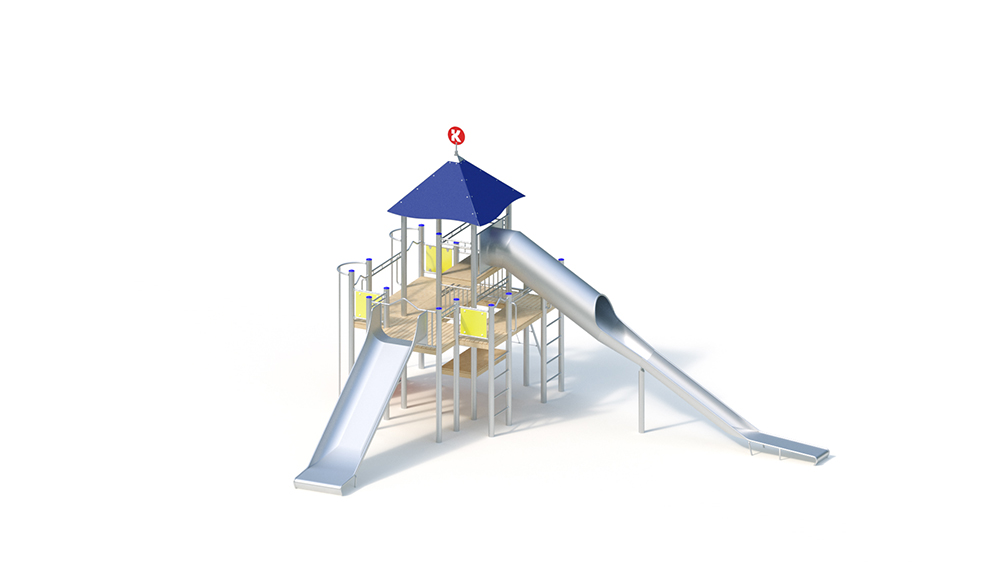

Climbing combination

-+

Public Playgrounds

Slide

Suitable for
children from 8 years,
public playgrounds etc.,
physical activities

Y

10.50 m

9.25 m

6.00 m

14.30 m

12.75 m

6.00 m

115.00 kg

1130.00 kg

2.10 m

1.00 m, 2.00 m, 3.00 m

20 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

2 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

1 piece - 0.60 x 0.40 x 0.40 m volume: 0.10 m3

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

-

4 pers.

10 h

Installation time 4 fitters 10 hours each, plus lifting gear (without creating the foundation)

Technical data
Floor area: 9.25 x 10.50 m
Minimum space: 12.75 x 14.30 m (95 m²)
Impact area: approx. 90 m²
Total height: 6.00 m
Platform height: 1.00 / 2.00 / 3, 00 m
seat height: 2.10 / 3.10 m

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– lattice
balustrade made of stainless steel tube, Ø 33.7 x 2/25 x 2 mm, one-piece welded construction – bow railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– tandem railing made of stainless steel tube , Ø 33.7 x 2 mm
– panel balustrade colored, highly weather-resistant HPL laminate board (yellow), fastening between stainless steel tubes Ø 33.7 x 2 mm
– climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, frame made of stainless steel tube, 12 climbing openings
– boarding net made of Hercules rope on stainless steel traverse
– vertical climbing pole made of stainless steel tube, Ø 38 mm
– climbing rungs made of stainless steel tube, Ø 38 mm, twist-proof
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (blue), 13 mm, with wind chime, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – Extension wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness : 2.5 mm, with anti-roll-off fall protection above the single seat part
– tunnel landslide, 0.60 m or 0.80 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with support posts made of stainless steel tube Ø 120 mm

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
20 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.30 x 0.30 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 0.75 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 2.07 m³

Free fall height
2.10 m
