0-57612-900

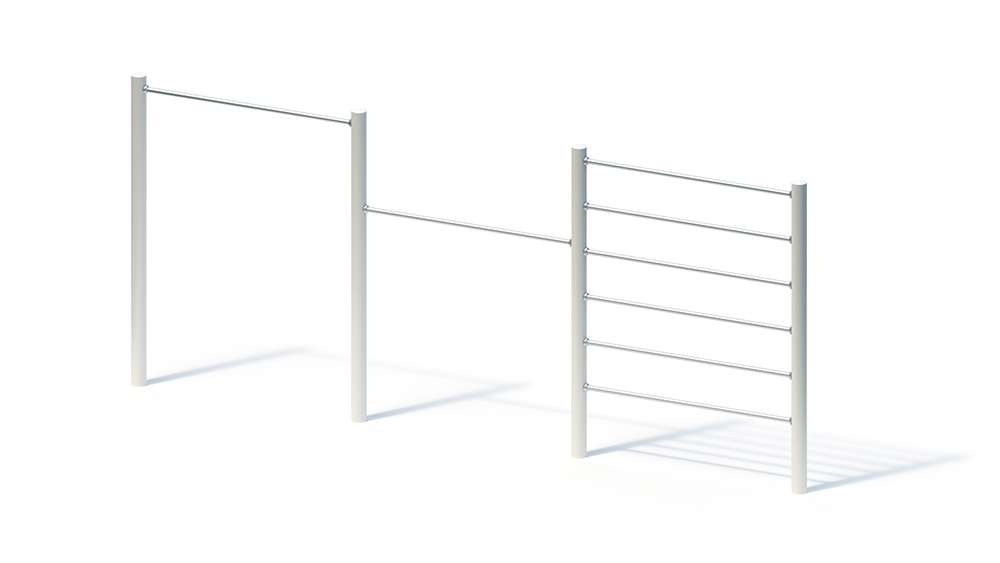

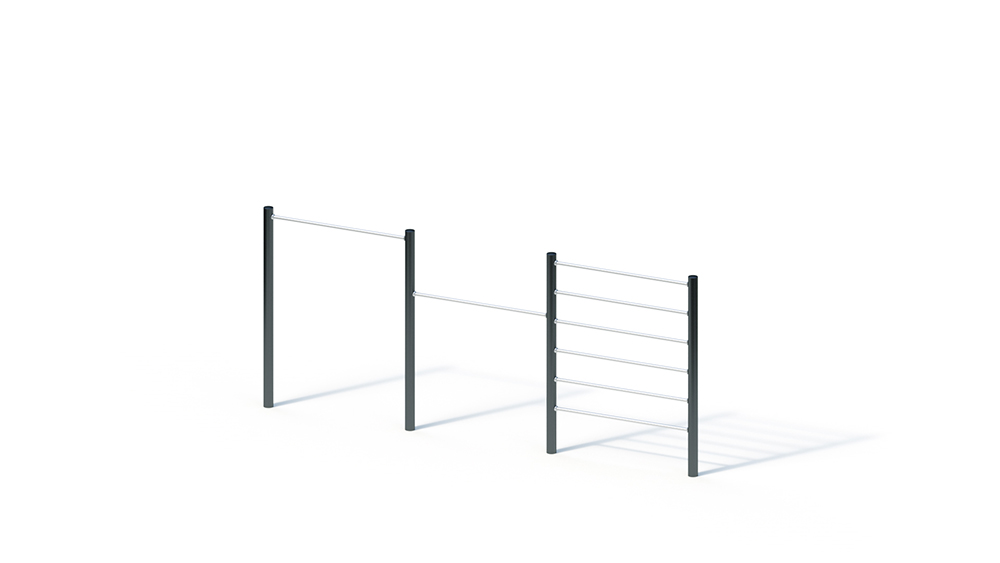

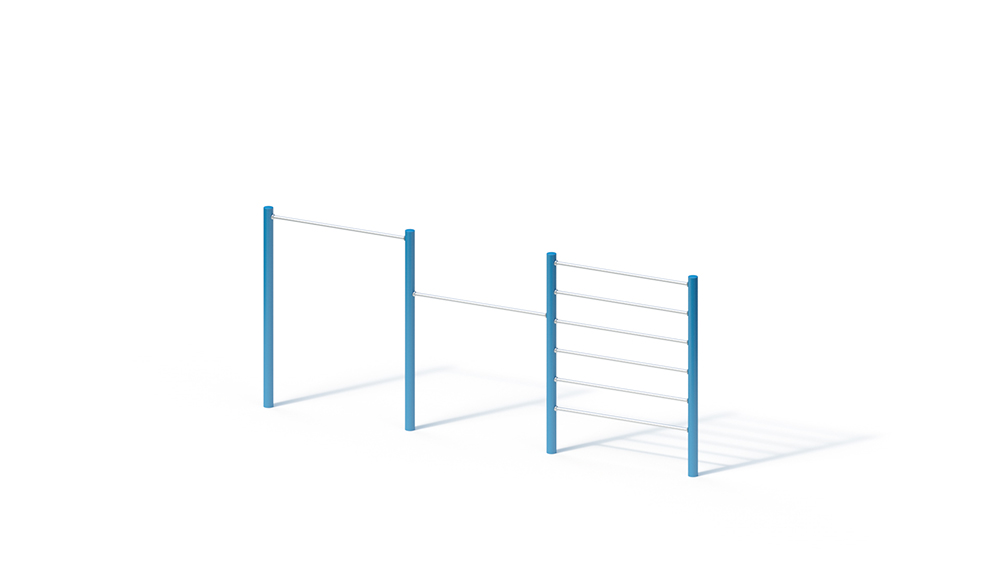

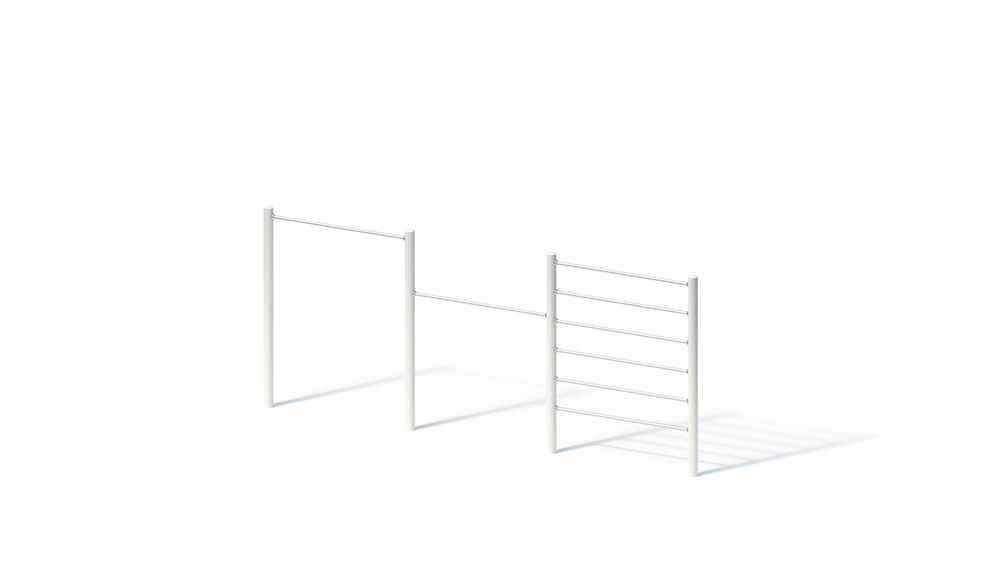

Calisthenics station
Key Attributes
Age Group
-+
Area of Use
Calisthenics
Activity
-
Suitable for
Suitable for
calisthenics
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
5.51 m
Total Width
0.11 m
Total Height
2.41 m
Minimum Space Length
9.61 m
Minimum Space Width
4.21 m
Minimum Space Height
2.41 m
Heaviest Single Piece
32.00 kg
(Total) Weight
180.00 kg
Free Height of Fall
2.32 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 1.40 x 0.50 x 0.60 m volume: 0.42 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Equipment room: 5.51 x 0.11 x 2.41 m
Minimum space: 9.40 x 4.00 x 2.41 m
Impact area: 37 m²
Total height: 2.41 m
Bar heights: 1.75 / 2.30 m
Free fall height: 2.32 m
Weight: 32 kg heaviest single part
180 kg in total
United Bars
stand posts made of stainless steel tube Ø 114.3 x 3 mm horizontal bars made of stainless steel tube
Ø 38 x 5 mm
Foundations (on site)
4 pcs. 1.40 x 0.50 x 0.60 m
Amount of concrete: 1.7 m³
