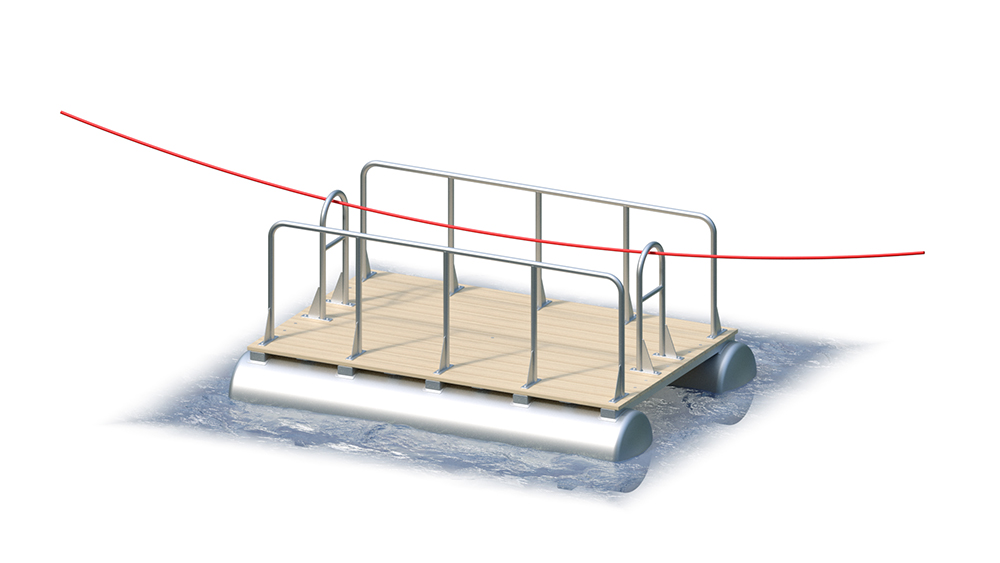

Cable ferry

5+

Supervised Playgrounds

physical Activity

Suitable for
children from 5 years of age
supervised playgrounds, etc.
physical activity.

-

2.75 m

1.90 m

1.35 m

2.75 m

1.90 m

1.35 m

-

370.00 kg

0.30 m

-

-

-

-

-

-

-

-

-

The assembly time is delivered in one piece

Technical data
Floor area: 2.75 x 1.90 m,
height: 1.35 m

– Floating body: welded stainless steel construction, material 1.4301
– Platform: profiled wooden deck made of Accoya corrugated / trapezoidal profile 142 x 25 x 3000 mm
– Railing / cable guide: stainless steel pipe 38 x 2/30 x 2 mm

Please note the following:
1. For problem-free operation (use by several children or adults without touching the ground, etc.) a water depth of at least 0.60 m is required.
2. Due to the maximum water depth of 0.40 m specified in the standard for planning public playgrounds (DIN 18034), we recommend this cable ferry exclusively for supervised playgrounds.
3. For the use of the cable ferry outside of Germany, the national regulations applicable in the respective country regarding water and water depths in public playgrounds or in amusement parks must be observed.
4. In order to ensure sufficient rope tension and thus a small amount of slack in the ferry rope, the maximum permissible length of the ferry rope is 30.00 m.

Payload: 400 kg maximum

Free fall height
0.30 m
