Cable car (20.00) with ramp

Key Attributes

Age Group


Area of Use

Public Playgrounds


physical Activity

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

22.50 m

Total Width

3.65 m

Total Height

3.90 m

Minimum Space Length

24.25 m

Minimum Space Width

5.70 m

Minimum Space Height

3.90 m

Heaviest Single Piece

165.00 kg

(Total) Weight

900.00 kg

Free Height of Fall

0.95 m

Platform Heights

0.90 m


Foundation 1

4 pieces - 0.80 x 0.80 x 0.80 m volume: 0.52 m3

Foundation 2

4 pieces - 1.00 x 1.00 x 0.80 m volume: 0.80 m3

Foundation 3

3 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation) + lifting gear

Technical Data

Technical data
Floor area: 3.65 x 22.50 m
Minimum space: 5.70 x 24.25 m (105 m²)

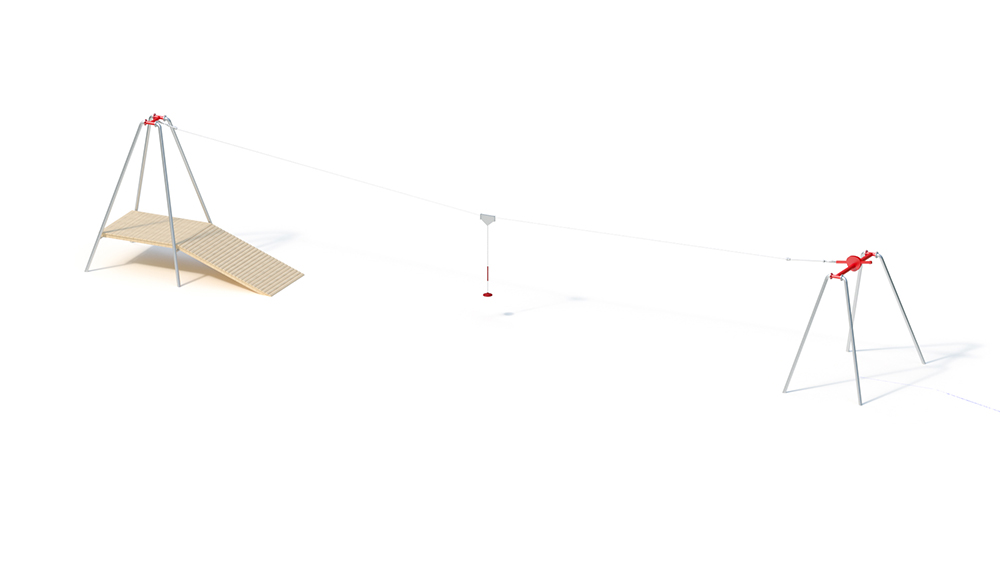

Cable car length: 20.00 m
Height of start station: approx. 3.90 m (above play level)
Height of end station: approx. 3.05 m (above play level)
Weight: 165 kg heaviest single part
900 kg in total

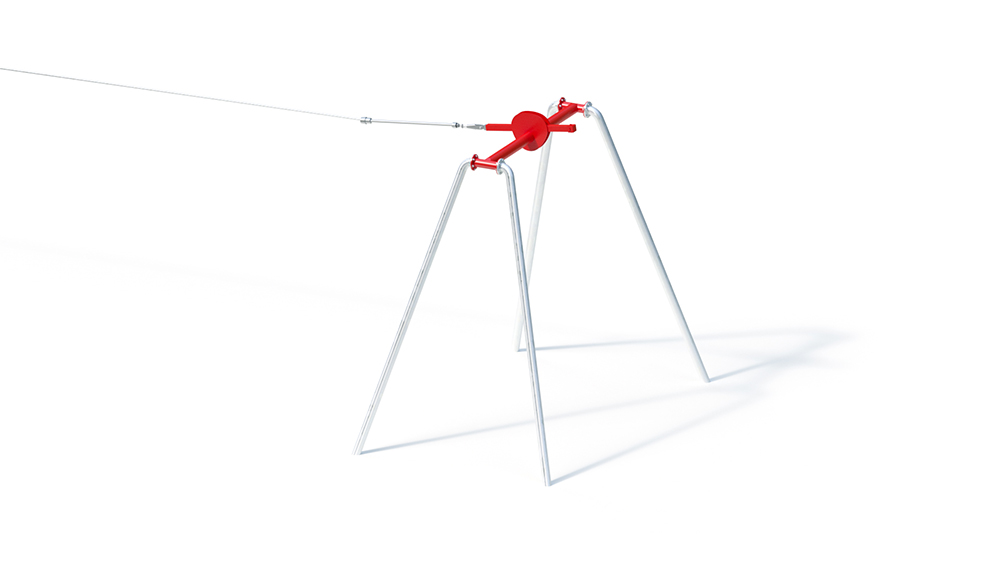

– Cable car support made of steel, hot-dip galvanized, powder-coated, color red / RAL 2002
– Cable car support made of hot-dip galvanized steel tube Ø 88.9 x 5.6 mm – Cable attachment
with one-sided tensioning device for problem-free, linear cable tensioning by means of self-locking trapezoidal

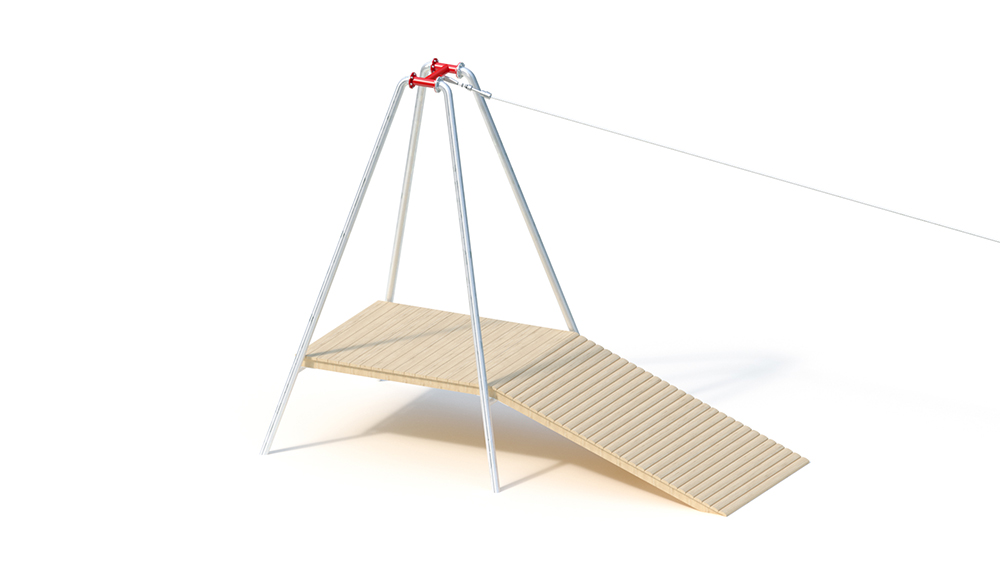

threaded rod – Cable car platform combination consisting of launch ramp, 1 , 90 mx 2.90 m, at an incline of approx. 20 °, leading from playing level zero to h = 1.00 m, and starting platform, 1.90 x 2.30 m, h = 1.00 m; Both with a substructure made of steel and squared timber covering made of robinia (required hill modeling in the area of ​​the impact area of ​​the starting station approx. 0.45 m above the play level in order to limit the free fall height to a maximum of 0.55 m)
– Carrying rope Ø 10 mm made of steel wire, galvanized , with damping stops
– Cable car made of stainless steel sheet with 3 roller bearing mounted polyamide rollers
– Stainless steel
chain with thermally pressed, flexible rubber handle and safety pendulum seat – Universal joint to minimize wear at the connection point of the chain adapter chain

For the start station, the hill must be modeled in the area of ​​the start ramp / starting platform in accordance with the assembly instructions. This must ensure that, in relation to the start ramp / the start platform, the maximum free height of fall at no point is more than 0.55 m to the impact area.

The cable car cable including the cable car trolley, pendulum seat and handle chain is delivered after the cable car has been installed and the exact dimensions possible (a description of how to carry out the measurement is included with delivery)

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.

Foundations (on site)
4 pcs. 0.80 x 0.80 x 0.80 m
4 pieces. 1.00 x 1.00 x 0.80 m
(reinforcement mesh basket is included)
3 pcs. 0.40 x 0.40 x 0.40 m
amount of concrete: 5.44 m³

Free fall height
0.55 m
