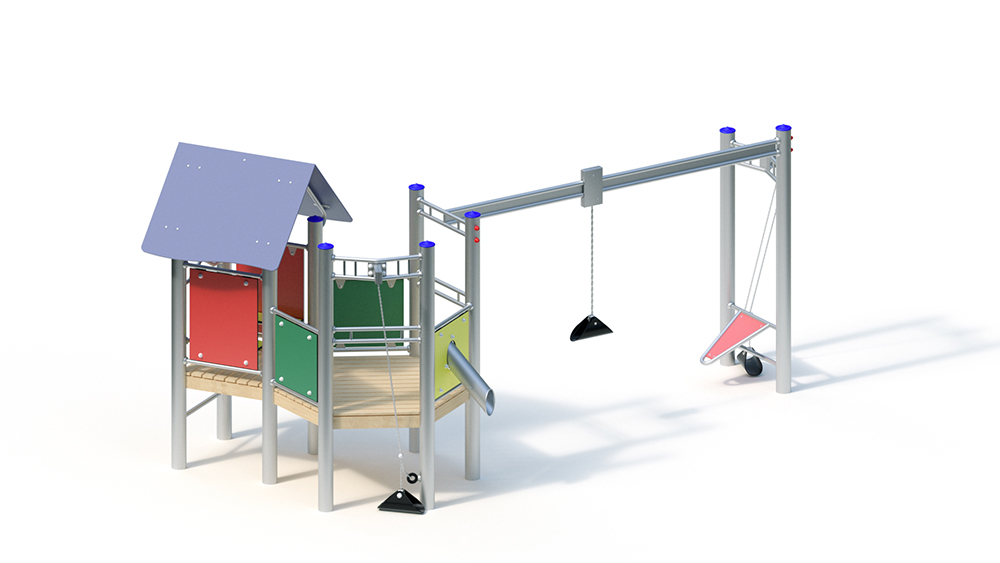

Building Yard

5+

Public Playgrounds

Social

Suitable for ages 5+,
public playgrounds etc.,
social / manual activities

-

5.65 m

2.85 m

2.60 m

8.65 m

5.85 m

2.60 m

50.00 kg

510.00 kg

0.80 m

0.80 m

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Floor area: 2.85 x 5.65 m
Minimum space: 5.85 x 8.65 m (36 m²)
Total height: 2.60 m
Platform height: 0.80 m
Weight: 50 kg Heaviest individual part
510 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attaching parts
– plate balustrade colored, highly weather-resistant HPL plate
– bulk pipe wall from HPL plate with sand bulk pipe including butterfly valve, attachment between stainless steel tubes Ø 33,7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem railing Stainless steel tube, Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– climbing rungs made of stainless steel
– seat: made of colored, highly weather-resistant HPL laminate board, 20 mm
Executed sand lift, transport container, rubber and a 4 mm stainless steel chain as a circulating member, so that the transport container can not be pulled into adjacent playing areas or free spaces –
– sand slide stainless steel tube with HPL plate
– transport rail made of stainless steel with sand transport carriage

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.64 m³

Free fall height
1.10 m
