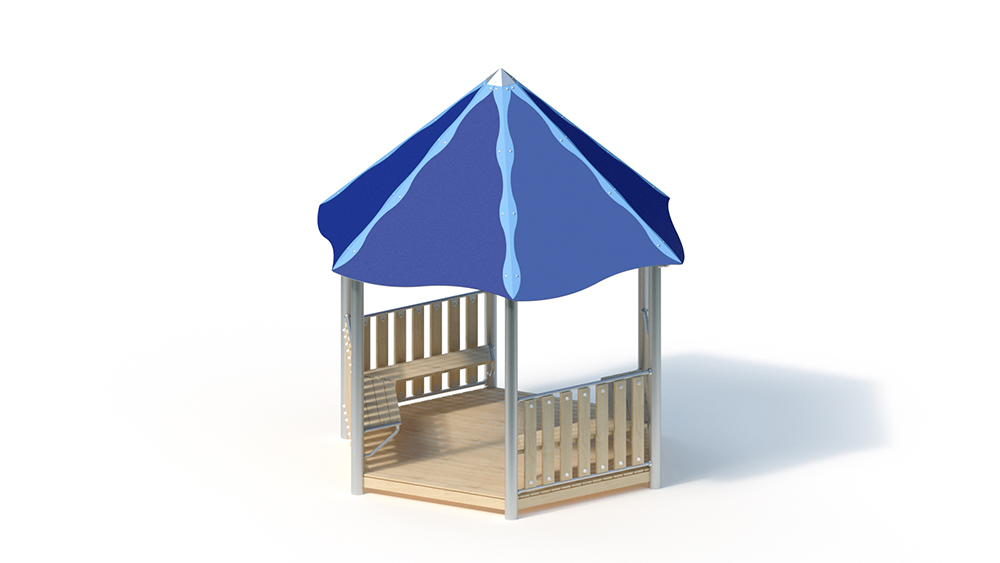

Bench pavilion

1+

Public Playground

-

Suitable for
all age groups,
public playgrounds etc.

Y

3.35 m

2.90 m

3.95 m

6.35 m

5.90 m

3.95 m

230.00 kg

775.00 kg

0.65 m

0.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each + lifting gear (without foundation creation)

Technical data
Floor area: 2.90 x 3.35 m
Minimum space: 5.90 x 6.35 m (30 m²)
Total height: 3.95
m
Seat height: 0.45 m Platform height: 0.20 m
Weight: 230 kg heaviest individual part
775 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm, edge cover made of stainless steel
– Robinia bench ledge 45 x 100 mm, planed, chamfered and free of rotten branches. Stainless steel substructure.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³

Free height of fall
0.65 m
