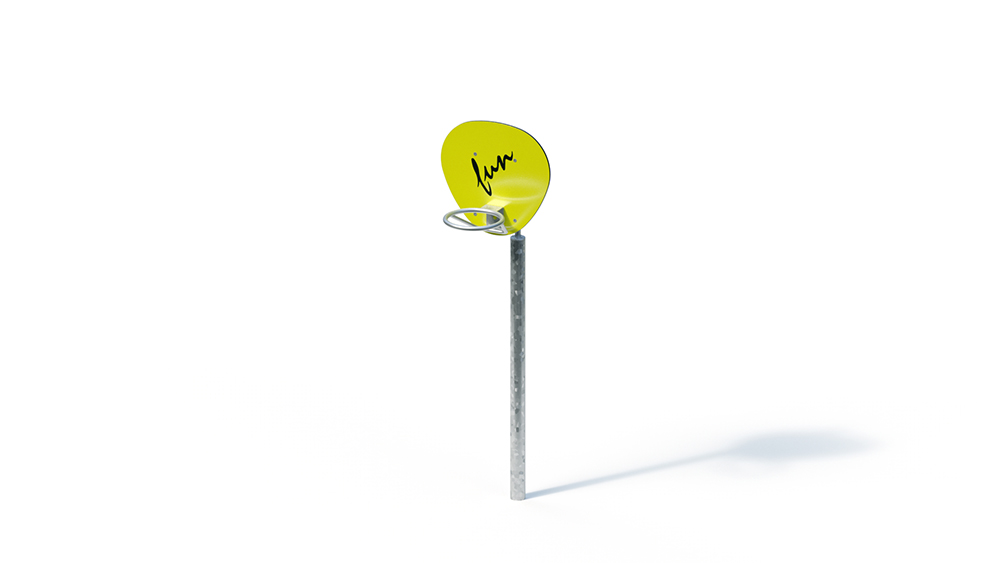

Basketball coach
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Sport Activity
Suitable for
Suitable for
from 3 years of age on
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
1.10 m
Total Width
1.00 m
Total Height
3.30 m
Minimum Space Length
-
Minimum Space Width
-
Minimum Space Height
-
Heaviest Single Piece
40.00 kg
(Total) Weight
80.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.60 x 0.60 x 0.60 m volume: 0.22 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Total height: 3.30 m
Basket height: 2.60 m Equipment
room: 1.00 x 1.10 m
Weight: 40 kg heaviest individual part
80 kg in total
– Post made of tubular steel, Ø 121 x 4 mm, hot-dip galvanized, with screwed-on basket holder, stainless steel 1.4301, tube Ø 48.3 x 5 mm
– Target board made of highly weather-resistant HPL laminate board, 20 mm, yellow, with black logo, “fun”
– Throwing ring made of bent stainless steel tube Ø 38 x 2 mm
Foundation (on site)
1 pc. 0.60 x 0.60 x 0.60 m
Amount of concrete: 0.22 m³
