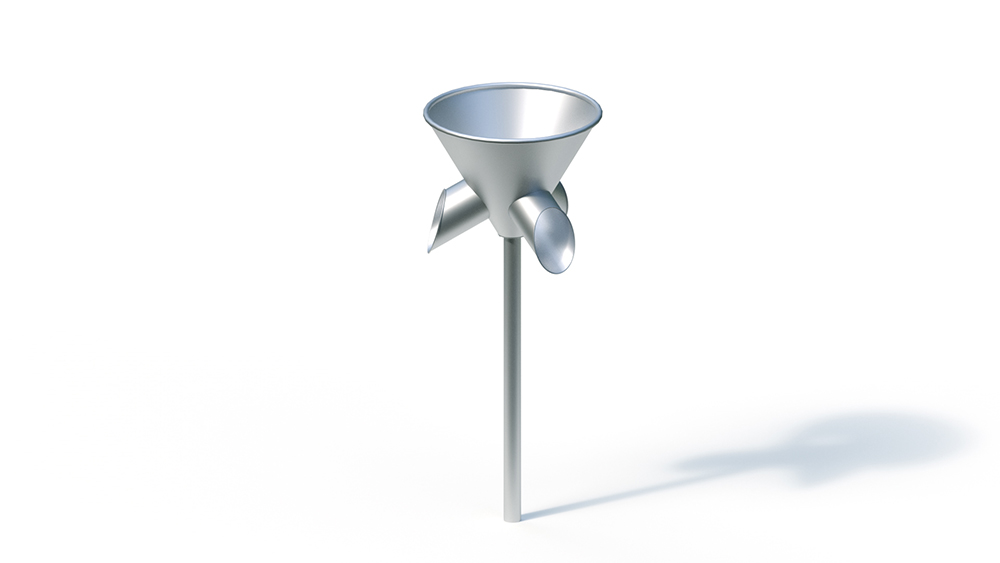

Ball hopper
Key Attributes
Age Group
4+
Area of Use
Public Playgrounds
Activity
sport Activity
Suitable for
Suitable for
children from 4 years,
public playgrounds etc.,
sporting activities.
Techincal Specifications
Lifting Device
-
Total Length
1.25 m
Total Width
1.25 m
Total Height
3.00 m
Minimum Space Length
-
Minimum Space Width
-
Minimum Space Height
-
Heaviest Single Piece
80.00 kg
(Total) Weight
160.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.60 x 0.60 x 0.70 m volume: 0.26 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Base area: Ø 1.25 m
total height: max: 3.00 m
Funnel: Ø 1.20 m
downpipe: Ø 0.30 m
Weight: 80 kg heaviest individual part
160 kg in total
– Post made of stainless steel tube, Ø 120 x 3 mm, for direct installation in in-situ concrete
– Ball funnel, funnel Ø 1.20 m, with a curved inner bottom made of stainless steel, sheet metal thickness 2.5 mm. All openings are protected by stainless steel rings.
Foundation (on site)
1 pc. 0.60 x 0.60 x 0.70 m
amount of concrete: 0.25 m³
