Area of Use
children from 5 years of age,
public playgrounds, etc.
Minimum Space Length
Minimum Space Width
Minimum Space Height
Heaviest Single Piece
Free Height of Fall
2 pieces - 1.30 x 0.85 x 0.40 m volume: 0.45 m3
Number of Installers
Floor area: 0.20 x 5.50 m
Minimum space: 3.20 x 8.50 m (26 m²)
Height: 0.55 m
Weight: 18 kg Heaviest individual part
55 kg in total

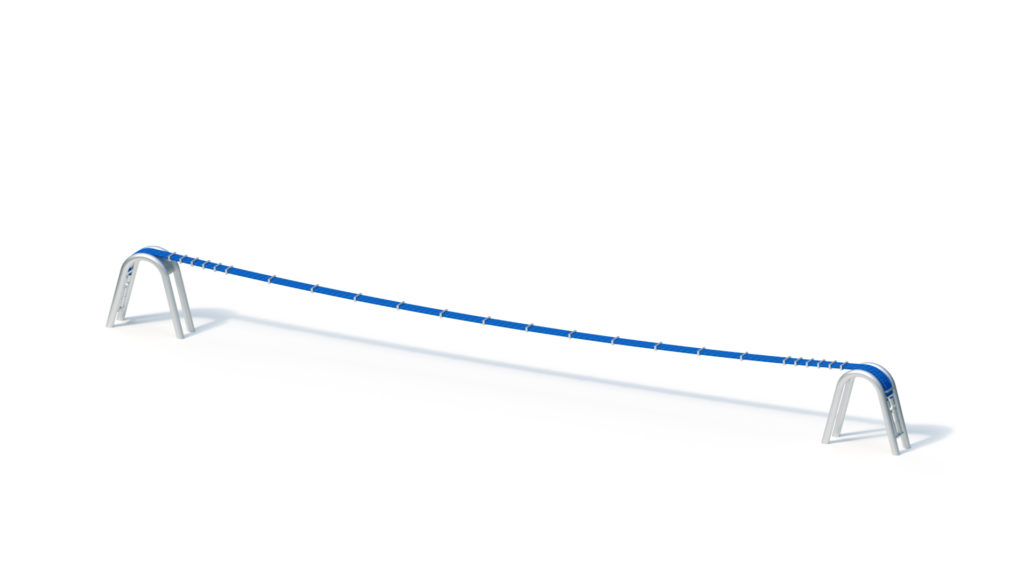

– smb suspension belt made of 3 Hercules ropes that run side by side and are firmly connected, approx. 90 mm wide.
– 2 rope brackets made of bent tube Ø 48.3 x 2.6 mm and stainless steel sheet, thickness 6 mm, with integrated tensioning device
– Anchoring of the brackets in the drill hole in the hardened foundations with the supplied compound anchors (anchor rod M16 + mortar cartridge)
Foundations (on site)
2 pcs. 1.30 x 0.85 x 0.40 m
(reinforcement mat is included)
Amount of concrete: 0.88 m³
Free fall height
Installation in areas without shock-absorbing properties (such as in pedestrian zones) is permitted.
