0-41422-001

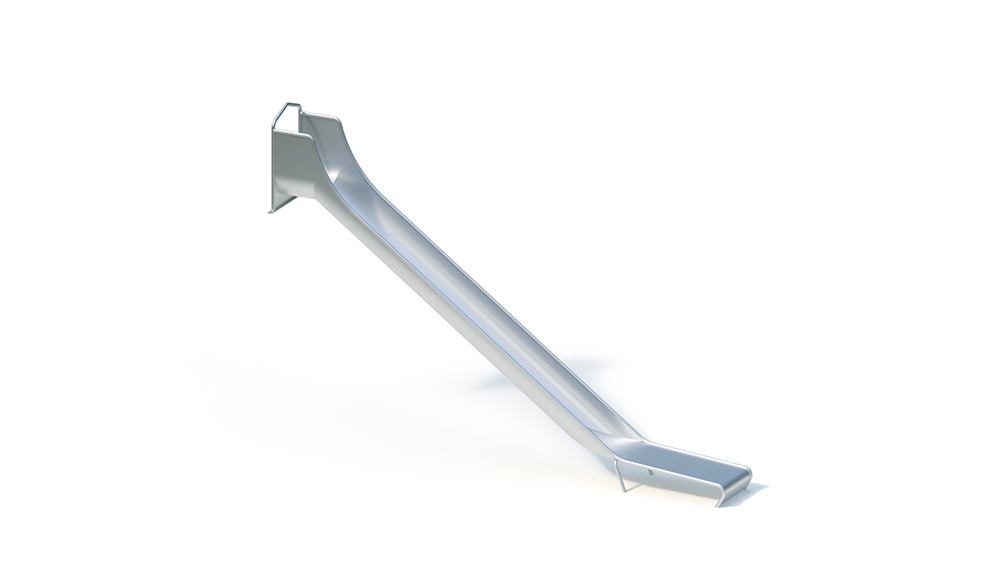

Add-on trough slide (2.20)

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

4.75 m

Total Width

0.60 m

Total Height

3.20 m

Minimum Space Length

8.20 m

Minimum Space Width

4.30 m

Minimum Space Height

3.80 m

Heaviest Single Piece

135.00 kg

(Total) Weight

135.00 kg

Free Height of Fall

2.30 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 0.90 x 0.75 x 0.40 m volume: 0.27 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

Assembly time + hoist is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 0.60 x 4.75 m
Minimum space: 4.65 x 8.20 m Extension
height: 2.20 m
Sitting height: 2.30 m Slide inclination
: 36 ° Slide width
: 0.60 m
Slide plate thickness : 2.5 mm
Weight: 135 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. The slide must be dowelled onto a strip foundation or other suitable surface.
Please note that in the area of ​​the flange on the slide seat there must be a suitable surface (wooden platform or planks, concrete foundation or similar) on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 0.27 m³

Free height of fall
max. 2.30 m
