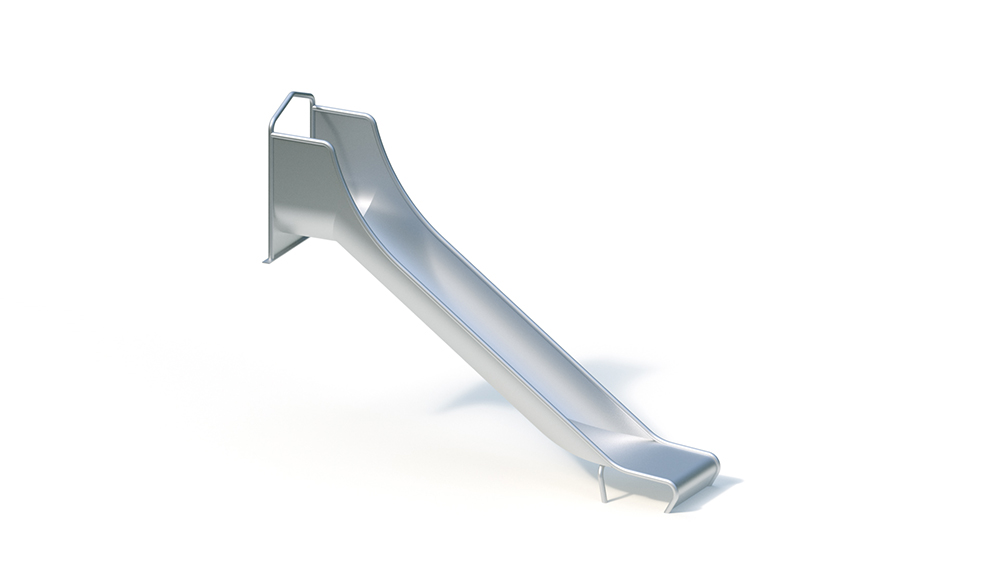

Add-on trough slide (1.20)

2+

Public Playgrounds

Slide

Suitable for
children from 2 years,
public playgrounds
exercise activities

-

2.75 m

0.60 m

2.20 m

6.30 m

3.60 m

2.80 m

85.00 kg

85.00 kg

1.30 m

-

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

-

-

-

Assembly time is delivered in one piece (without foundation creation)

Technical data
Base area: 0.60 x 2.75 m
Minimum space: 3.60 x 6.30 m Extension
height: 1.20 m
Sitting height: 1.30 m Slide inclination
: 36 ° Slide width
: 0.60 m
Slide plate thickness : 2.5 mm
Weight: 85 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. Please note that in the area of ​​the flange on the slide seat, a suitable base (wooden platform or planks, concrete foundation, etc.) must be available on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.12 m³

Free height of fall
max. 1.30 m
