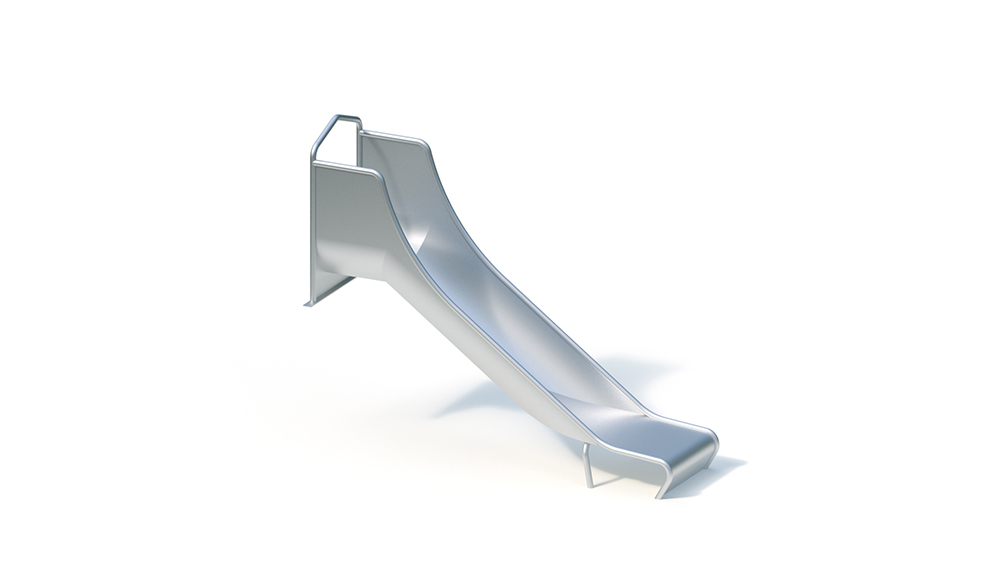

Add-on trough slide (0.80)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 2 years of age,
public playgrounds,
exercise activities

Techincal Specifications

Lifting Device


Total Length

2.20 m

Total Width

0.60 m

Total Height

1.80 m

Minimum Space Length

5.70 m

Minimum Space Width

3.60 m

Minimum Space Height

2.40 m

Heaviest Single Piece

70.00 kg

(Total) Weight

70.00 kg

Free Height of Fall

0.90 m

Platform Heights



Foundation 1

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 0.60 x 2.20 m
Minimum space: 3.60 x 5.70 m
Flange width: 0.71
Attachment height: 0.80 m Sitting height: 0.90 m Slide inclination
: 36 ° Slide width
: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 70 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the recess. The slide must be dowelled on a strip foundation or another suitable surface.
Please note that in the area of ​​the flange on the slide seat, a suitable surface (wooden platform or planks, concrete foundation, etc.) must be available on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.12 m³

Free height of fall
max. 0.90 m
