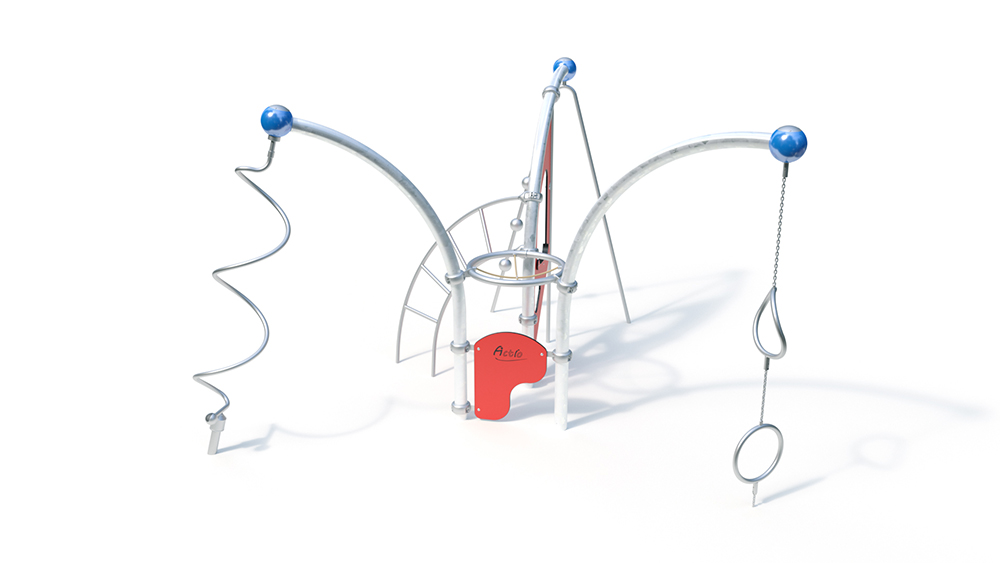

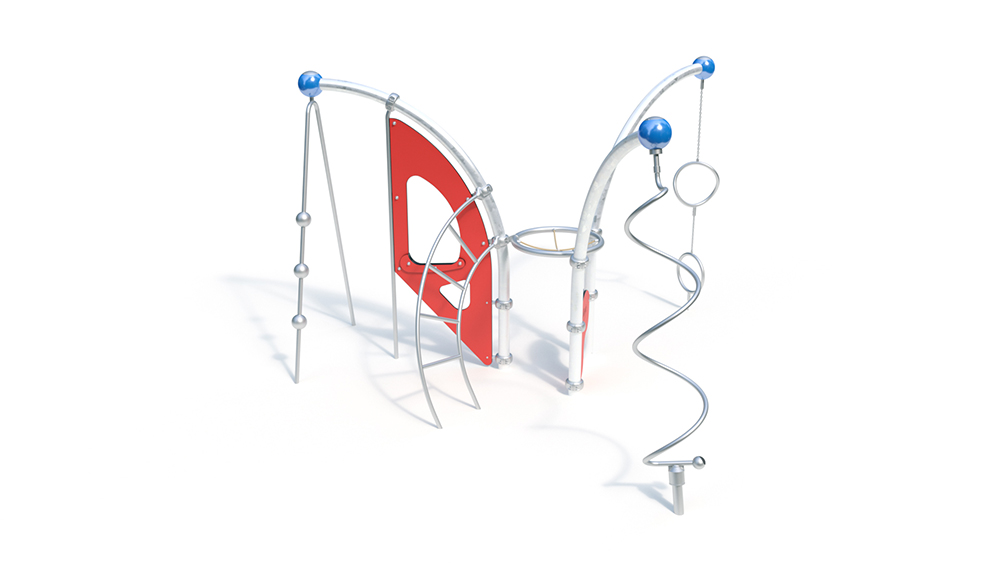

Actio 303

6+

Public playgrounds

Climb

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.89 m

4.72 m

2.93 m

8.13 m

7.83 m

2.93 m

67.00 kg

488.00 kg

2.86 m

-

2 pieces - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

4 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

1 piece - 1.80 x 0.50 x 0.50 m volume: 0.45 m3

-

-

3 pers.

5h

Assembly time 3 fitters each 5 hours (without foundation creation)

Technical data
Equipment room: 4.89 x 4.72 x 2.93 m
Minimum space: 8.13 x 7.83 x 2.93 m
Impact area: 45 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single part
488 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Big Tornado
– welded, spiral-shaped construction made of stainless steel tube with knurled base
– roller bearings below and above: tamper-proof and protected against dirt
– anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be concreted
– above: screwable connection to the Actio construction element
– below: anchoring is carried out via a foundation anchor to be concreted in hot-dip galvanized steel

Chill Wall
– climbing wall made of highly weather-resistant HPL laminate board, color red, similar to RAL 2002, 20 mm.
– above: connection to the Actio construction
element by means of an aluminum clamp (optionally powder-coated in RAL color of your choice) and a welded construction made of stainless steel pipe Ø 38 – below: restraint through site foundations

Climbing Pipe
– welded construction made of stainless steel pipe Ø 38 mm with three stainless steel balls Ø150 mm
– above: screwable connection to Actio construction
element – below: restraint through site foundations

Monkey Rings
– ring combination made of stainless steel tube Ø 38 mm – 1x flat / 1x spatially twisted
– suspension and connection with 7 mm stainless steel chains and swivel
– rotatable independently of each other
– above: screwable connection to Actio construction element
– below: deflection by chain with foundation and screwed Limited ground connection

Meeting point
– welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
– connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice)

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
2 pieces. Elbow 90 °
1 pc. Pipe bend 75 °
10 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
2 pcs. 1.30 x 0.50 x 0.50 m
1 pc. 1.80 x 0.50 x 0.50 m
1 pc. 0.90 x 0.40 x 0.50 m
4 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 2.10 m³
