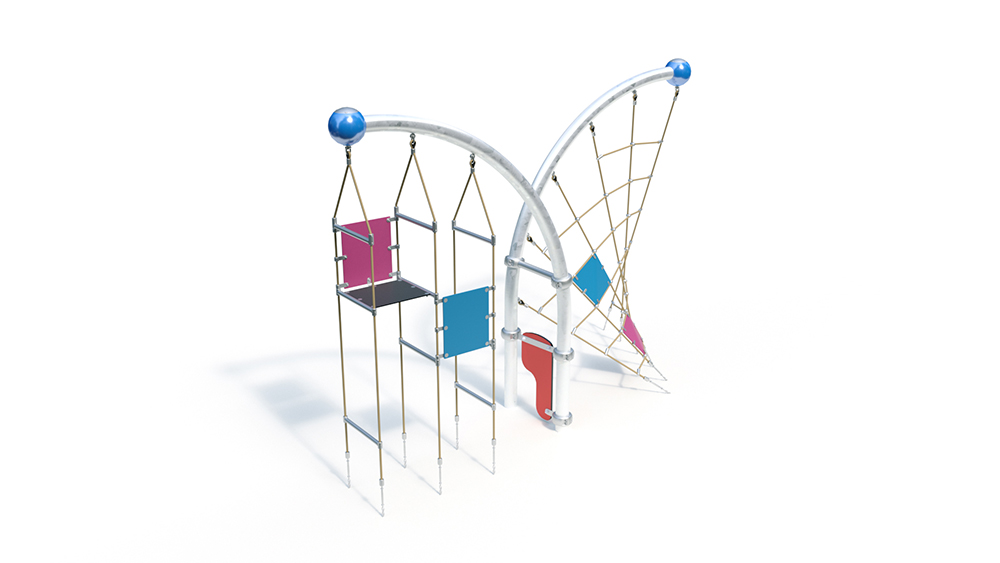

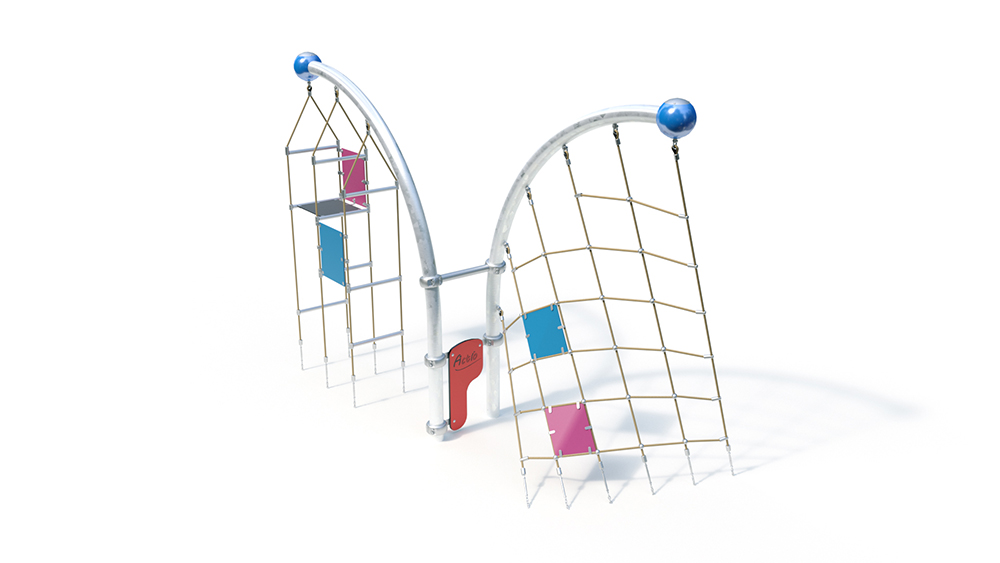

Actio 287

6+

Public playgrounds

-

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

3.99 m

1.78 m

2.93 m

8.34 m

5.48 m

2.93 m

67.00 kg

205.00 kg

2.86 m

-

1 piece - 1.20 x 0.70 x 0.50 m volume: 0.42 m3

1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3

1 piece - 2.50 x 0.30 x 0.50 m volume: 0.38 m3

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment room:
Minimum space:
Impact area:
Total height:
Free height of fall:
Weight: kg heaviest individual part,
kg total

Arc 90 ° Climbing Cube
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Arc 90 ° Twister
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
– Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Climbing Cube
– polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel insert
– rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– fastening strap for rubber mat, clamping tube (Ø 34 x 8.5 mm) welded with sheet metal (30 x 68 mm)
– cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded with clamping tube (Ø 34 x 8.5 mm)
– floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end, welded at the bottom with a turnbuckle (M10)
– connection to Arc 90 ° by shackles, Ø 10 mm

Twister
– Polypropylene rope (Ø 16 mm), 6-strand, with galvanized steel core
– Cross connections and T-connecting elements in the cable network are made of aluminum
– Rubber mats (8mm), PAH-free and 4-fold textile-reinforced rubber
– Attachment of rubber mat by U- Bracket (stainless steel)
– floor attachment, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
screwed at the bottom with foundation tube (Ø 38 x 2 mm)
– connection to Arc 90 ° through shackles, Ø 10 mm

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched, spatially twisted ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Foundations (on site)
1 pc. 1.20 x 0.70 x 0.50 m
1 pc. 1.70 x 1.00 x 0.50 m
1 pc. 2.50 x 0.30 x 0.50 m
amount of concrete: 1.65 m³
