Actio 285

6+

Public playgrounds

Physical Activity

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

-

4.55 m

1.55 m

2.89 m

7.55 m

4.15 m

2.89 m

62.00 kg

242.00 kg

1.38 m

-

1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

-

-

-

-

2 pers.

3h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Equipment room: 4.55 x 1.15 x 2.89 m
Minimum space: 7.55 x 4.15 x 2.89 m
Impact area: 25 m²
Total height: 2.89 m
Free fall height: 1.38 m
Weight: 62 kg heaviest single part
242 kg in total

Arc 75 °
– Elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– Ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see item below), with additional safety chain

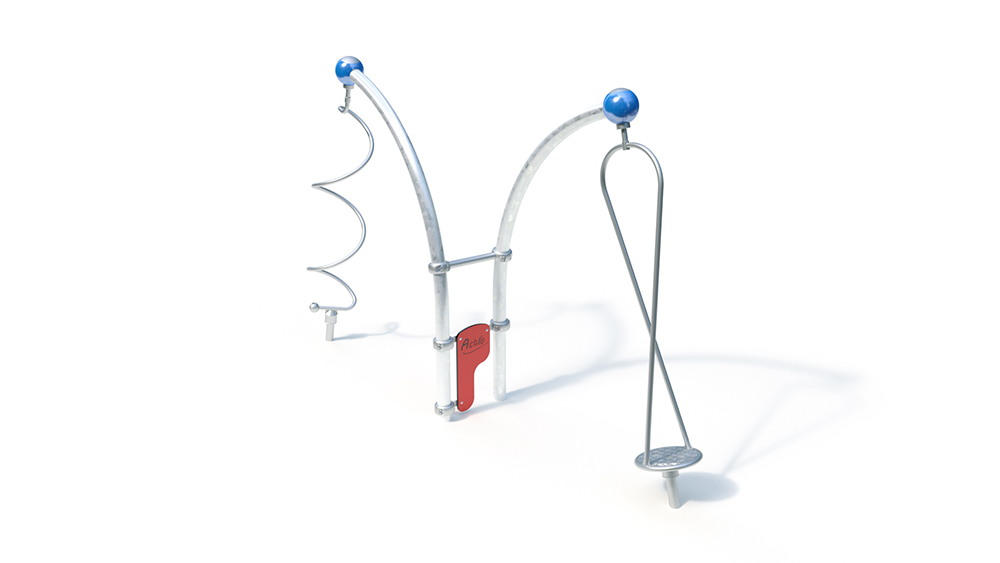

Big Tornado
– welded, spiral-shaped construction made of stainless steel tube with knurled base
– roller bearings below and above: tamper-proof and protected against dirt
– anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be concreted
– above: screwable connection to the Actio construction element
– below: anchoring is carried out via a foundation anchor to be concreted in hot-dip galvanized steel

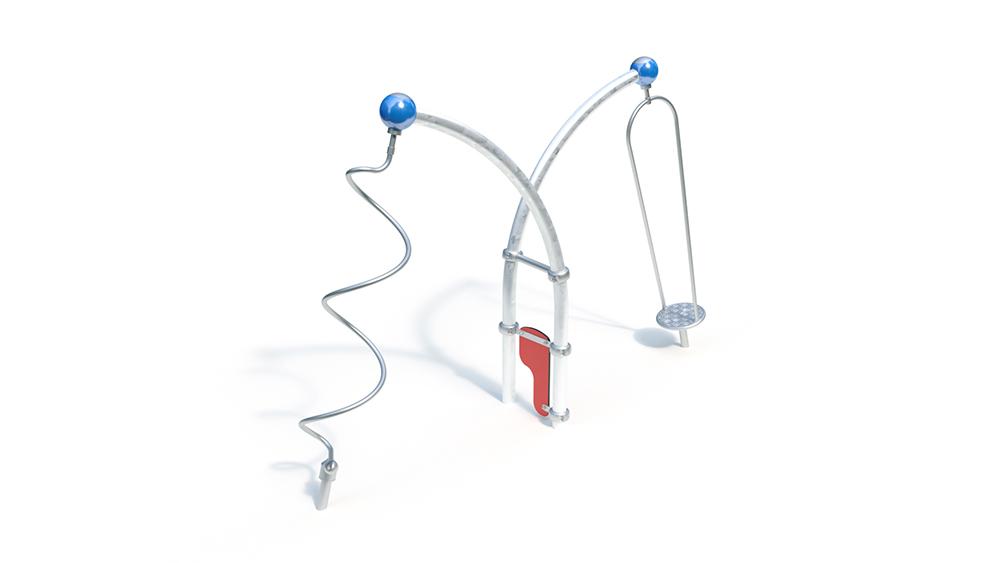

Big Hurricane
– welded, twisted construction made of stainless steel tube
– rotating bottom made of profiled stainless steel
sheet – roller bearings below and above: tamper-proof and protected against dirt
– above: screwable connection to the Actio construction element
– below: anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be set in concrete

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clamps (optionally powder-coated in RAL color of your choice).

Number of components for optional powder coating
2 pieces. Elbow 75 °
5 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.70 x 1.00 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 1.2 m³
