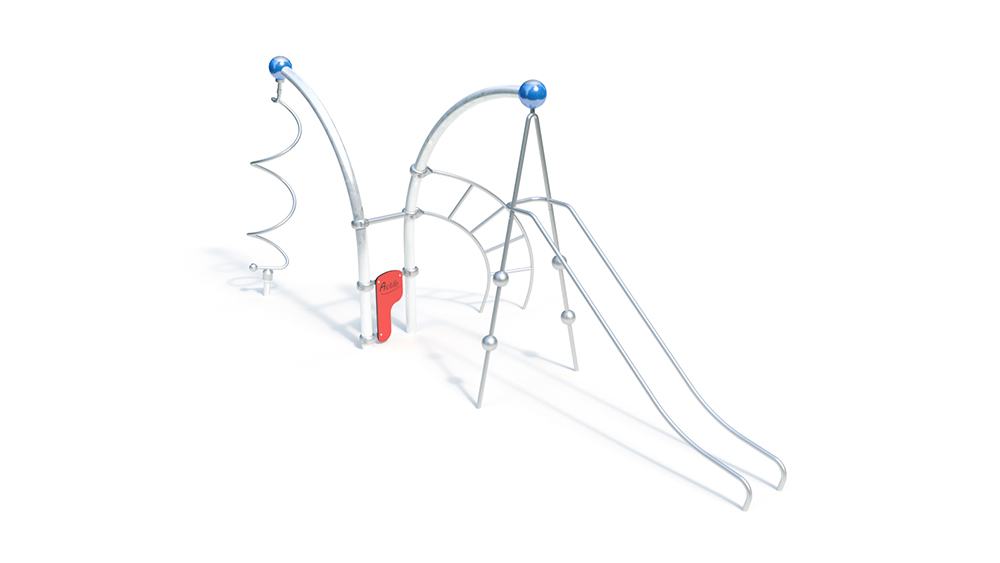

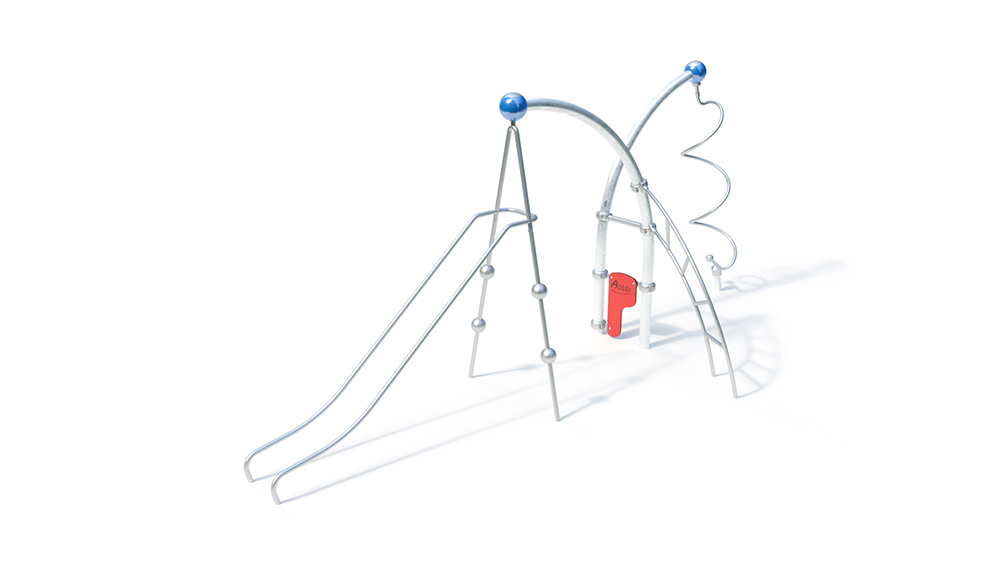

Actio 265
Key Attributes
Age Group
6+
Area of Use
Public playgrounds
Activity
Slide
Suitable for
Suitable for
children from 6 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
6.81 m
Total Width
2.31 m
Total Height
2.93 m
Minimum Space Length
9.81 m
Minimum Space Width
5.61 m
Minimum Space Height
2.93 m
Heaviest Single Piece
67.00 kg
(Total) Weight
278.00 kg
Free Height of Fall
1.83 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3
Foundation 2
2 pieces - 0.90 x 0.40 x 0.50 m volume: 0.18 m3
Foundation 3
3 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
4 h
Assembly Details
Assembly time 2 fitters each 4 hours (without foundation creation)
Technical Data
Technical data
Equipment room: 6.81 x 2.31 x 2.93 m
Minimum room: 9.81 x 5.61 x 2.93 m
Impact area: 40 m²
Total height: 2.93 m
Free fall height: 1.83 m
Weight: 67 kg heaviest single part
278 kg in total
Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)
Big Tornado
– welded, spiral-shaped construction made of stainless steel tube with knurled base
– roller bearings below and above: tamper-proof and protected against dirt
– anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be concreted
– above: screwable connection to the Actio construction element
– below: anchoring is carried out via a foundation anchor to be concreted in hot-dip galvanized steel
Monkey Slide
– welded, partially screwed construction made of stainless steel tube Ø 42.4 mm
– spherical
access
elements made of stainless steel – above: screwable connection to Actio construction element – below: restraint through site foundations
Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations
Number of components for optional powder coating
1 pc. Elbow 90 °
1 pc. Elbow 75 °
6 pcs. Aluminum clamp Ø 114 mm
Foundations (on site)
1 pc. 1.70 x 1.00 x 0.50 m
2 pieces. 0.90 x 0.40 x 0.50 m
3 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: 1.8 m³
