0-27235-001

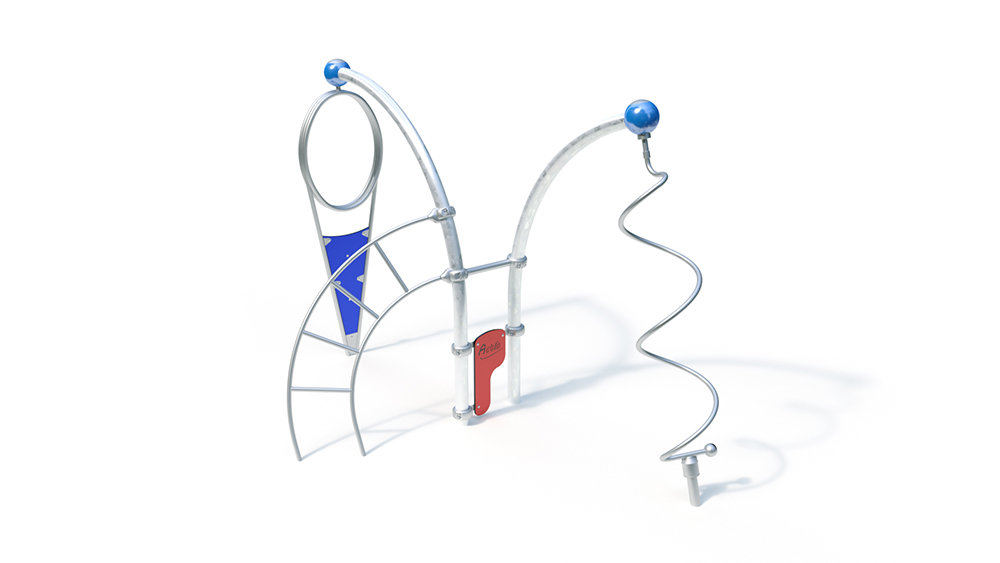

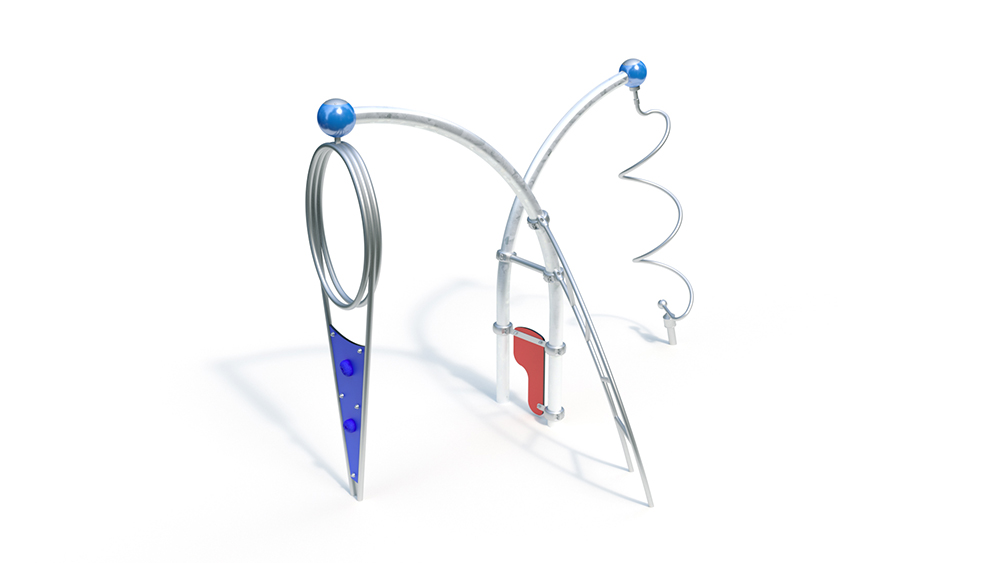

Actio 235

Key Attributes

Age Group

6+

Area of Use

Public playgrounds

Activity

Climb

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

4.23 m

Total Width

2.31 m

Total Height

2.93 m

Minimum Space Length

7.23 m

Minimum Space Width

5.32 m

Minimum Space Height

2.93 m

Heaviest Single Piece

67.00 kg

(Total) Weight

260.00 kg

Free Height of Fall

1.89 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.70 x 1.00 x 0.50 m volume: 0.85 m3

Foundation 2

1 piece - 0.90 x 0.40 x 0.50 m volume: 0.18 m3

Foundation 3

2 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

4 h

Assembly Details

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 4.23 x 2.31 x 2.93 m
Minimum space: 7.23 x 5.32 x 2.93 m
Impact area: 28 m²
Total height: 2.93 m
Free fall height: 1.89 m
Weight: 67 kg heaviest single part
260 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Arc 75 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Big Tornado
– welded, spiral-shaped construction made of stainless steel tube with knurled base
– roller bearings below and above: tamper-proof and protected against dirt
– anchoring takes place via a foundation anchor made of hot-dip galvanized steel to be concreted
– above: screwable connection to the Actio construction element
– below: anchoring is carried out via a foundation anchor to be concreted in hot-dip galvanized steel

Resting Point
– climbing wall made of highly weather-resistant HPL laminate board, color blue, similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38; with free climbing elements attached on one side
– above: screwable connection to Actio construction element
below: restraint through on-site foundations

Actio sign
– Actio sign made of a highly weather-resistant HPL laminate board, including “Actio” marking, 20 mm, color red, similar to RAL 2002.
Connection with aluminum clips (optionally powder-coated in RAL color of your choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– arched ladder
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of your choice).
– below: restraint by in-situ foundations

Number of components for optional powder coating
1 pc. Elbow 90 °
1 pc. Elbow 75 °
6 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.70 x 1.00 x 0.50 m
1 pc. 0.90 x 0.40 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
amount of concrete: approx. 1.40 m³
