0-27115-001

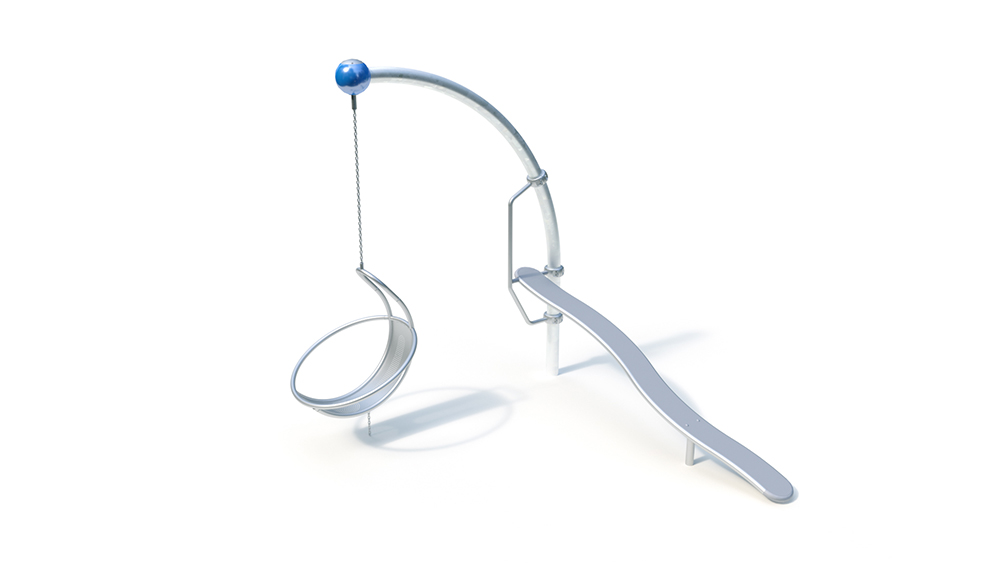

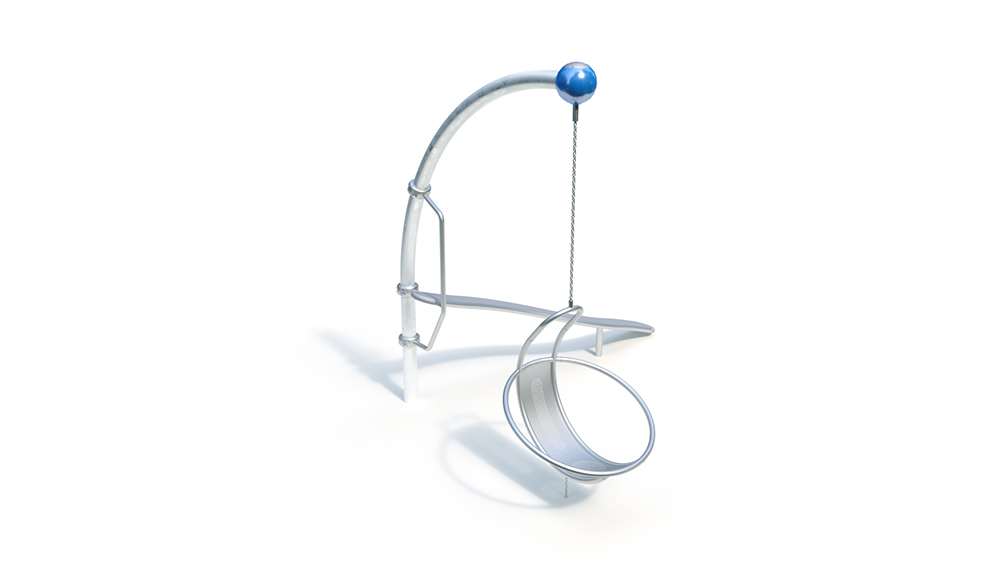

Actio 115

Key Attributes

Age Group

6+

Area of Use

public playgrounds

Activity

Slide

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

3.19 m

Total Width

2.58 m

Total Height

2.93 m

Minimum Space Length

6.19 m

Minimum Space Width

5.58 m

Minimum Space Height

2.93 m

Heaviest Single Piece

67.00 kg

(Total) Weight

133.00 kg

Free Height of Fall

1.39 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.30 x 0.50 x 0.50 m volume: 0.33 m3

Foundation 2

-

Foundation 3

3 pieces - 0.60 x 0.60 x 0.50 m volume: 0.18 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 2.58 x 3.19 x 2.93 m
Minimum space: 5.58 x 6.19 x 2.93 m
Impact area: 25 m²
Total height: 2.93 m
Free fall height: 1.39 m
Weight: 67 kg heaviest single part
133 kg in total

Arc 90 °
– elbow made of steel, hot-dip galvanized, Ø 114 x 3.6 mm (optionally powder-coated in RAL color of your choice)
– ball made of aluminum, Ø 250 mm, powder-coated in RAL color of your choice (see items below)

Chill Seat
– seat frame made of welded stainless steel tubular construction
– seat made of stainless
steel sheet with hole pattern – suspension on 7 mm stainless steel chain and swivel
– above: screwable connection to Actio construction element
– below: deflection limited by a chain with a foundation and screwed floor connection

Glider
sliding surface made of stainless steel
– above: connection to the Actio construction element with aluminum clamps (optionally powder-coated in RAL color of
your choice) and a welded construction made of stainless steel tube Ø 38 – below: restraint through site foundations

Number of components for optional powder coating
1 pc. Elbow 90 °
3 pcs. Aluminum clamp Ø 114 mm

Foundations (on site)
1 pc. 1.30 x 0.50 x 0.50 m
2 pieces. 0.60 x 0.60 x 0.50 m
Amount of concrete: approx. 0.9 m³
